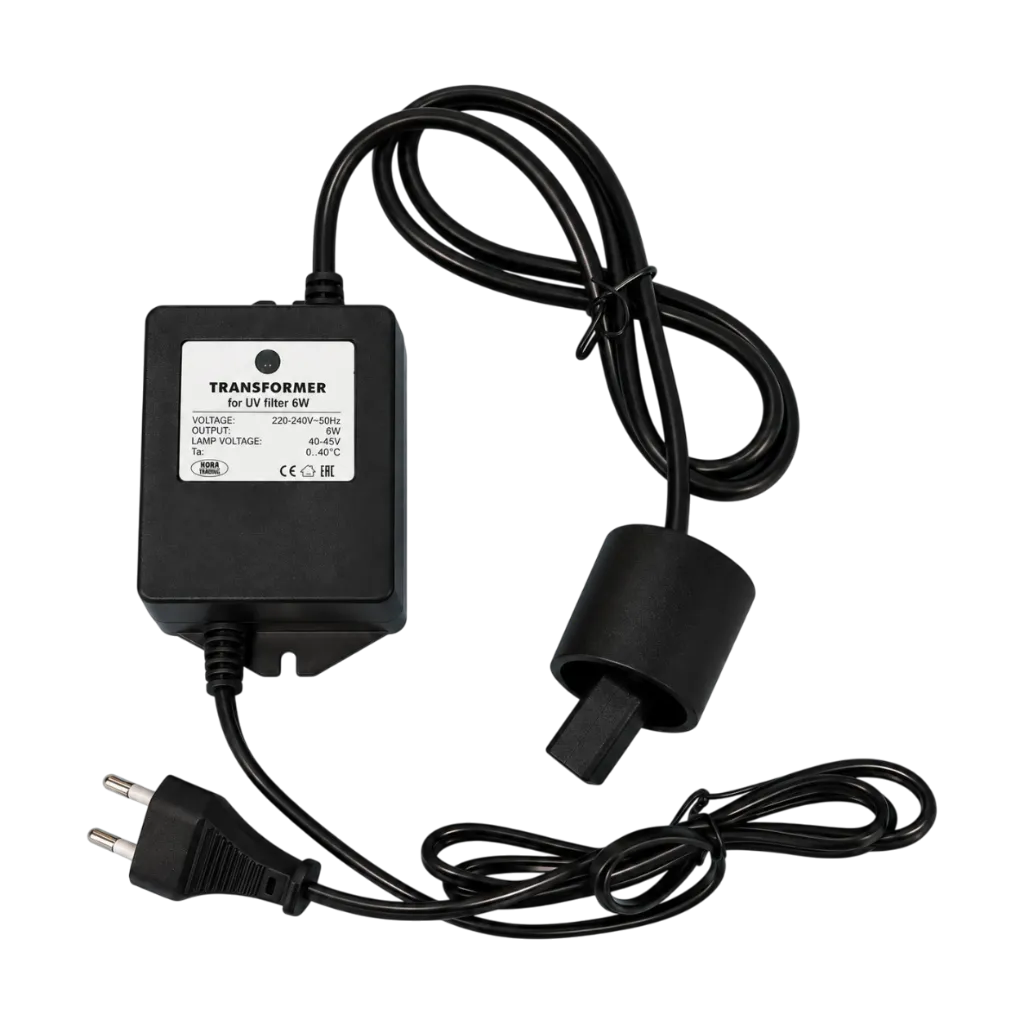

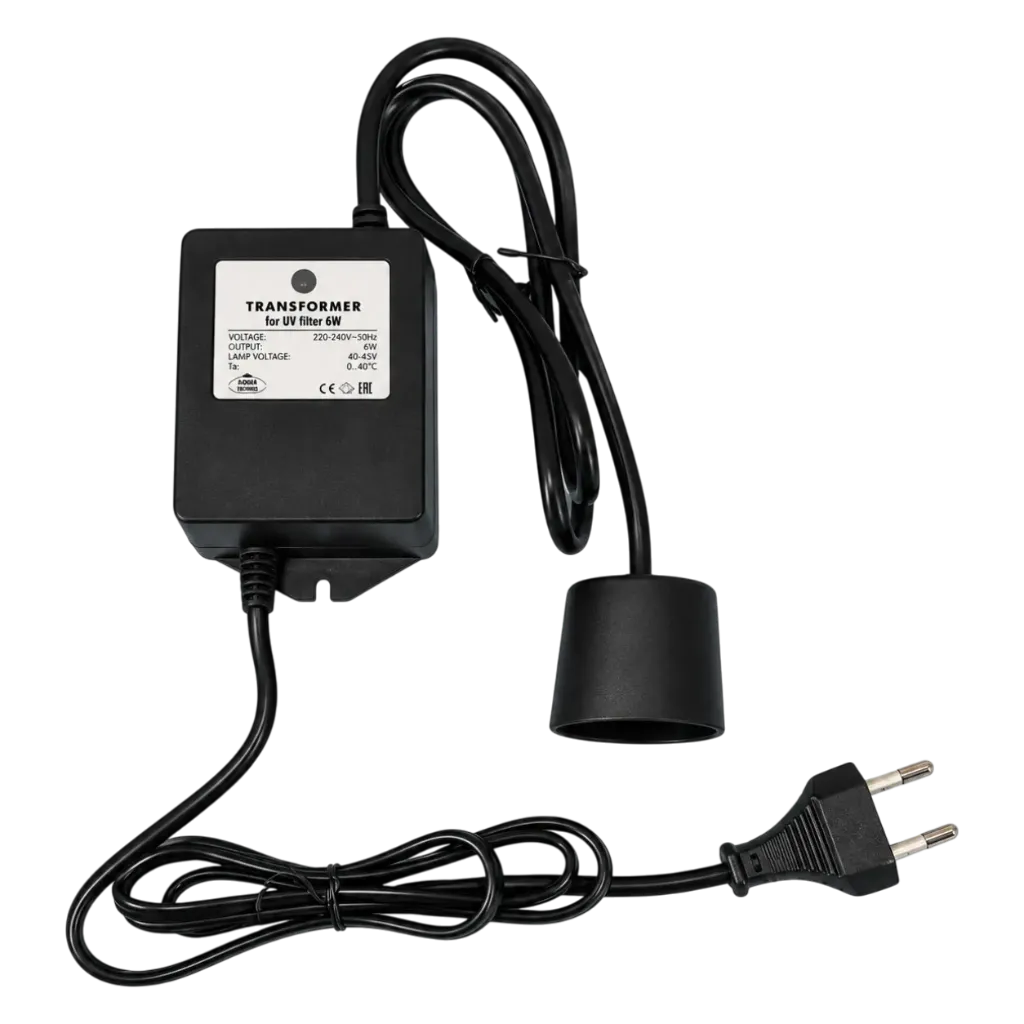

Electronic Ballast Transformer for Luxe Style 6W UV Filter

The Luxe Style 6W electronic ballast transformer is an original replacement power supply unit engineered specifically for compact Luxe Style 6W ultraviolet water disinfection systems. Designed to provide reliable lamp ignition and maintain optimal electrical parameters, the power supply unit stabilizes operating voltage and current, protecting the UV lamp from power fluctuations and ensuring conditions for its steady continuous operation. Housed in a durable, flame-retardant plastic casing equipped with mounting tabs, the unit enables neat wall- or bracket-mounting next to point-of-use water filters and reverse osmosis systems.

9.83 € 9.83 € (Tax included)
9.83 € (Tax included)

Add to cart
Buy now
Terms and Conditions

Internal Reference: 122155
Barcode: 1872025005136

Operating on a standard 220–240 V / 50 Hz power input, the unit converts mains power to an output lamp voltage of 40–45 V required for 6W germicidal UV lamps. It comes fully pre-wired with an integrated LED operational indicator for rapid visual status checks, a standard European power plug, and a moisture-resistant lamp connector boot designed to seat securely over the lamp's 4-pin base. This plug-and-play architecture simplifies maintenance and guarantees electrical safety during regular filter operation.

Functional Features:

  • Stable Electrical Regulation: Delivers consistent lamp voltage (40–45 V) and current control to protect the UV lamp and prolong its operating life.

  • LED Status Indicator: Built-in indicator light provides immediate visual confirmation of normal power supply operation.

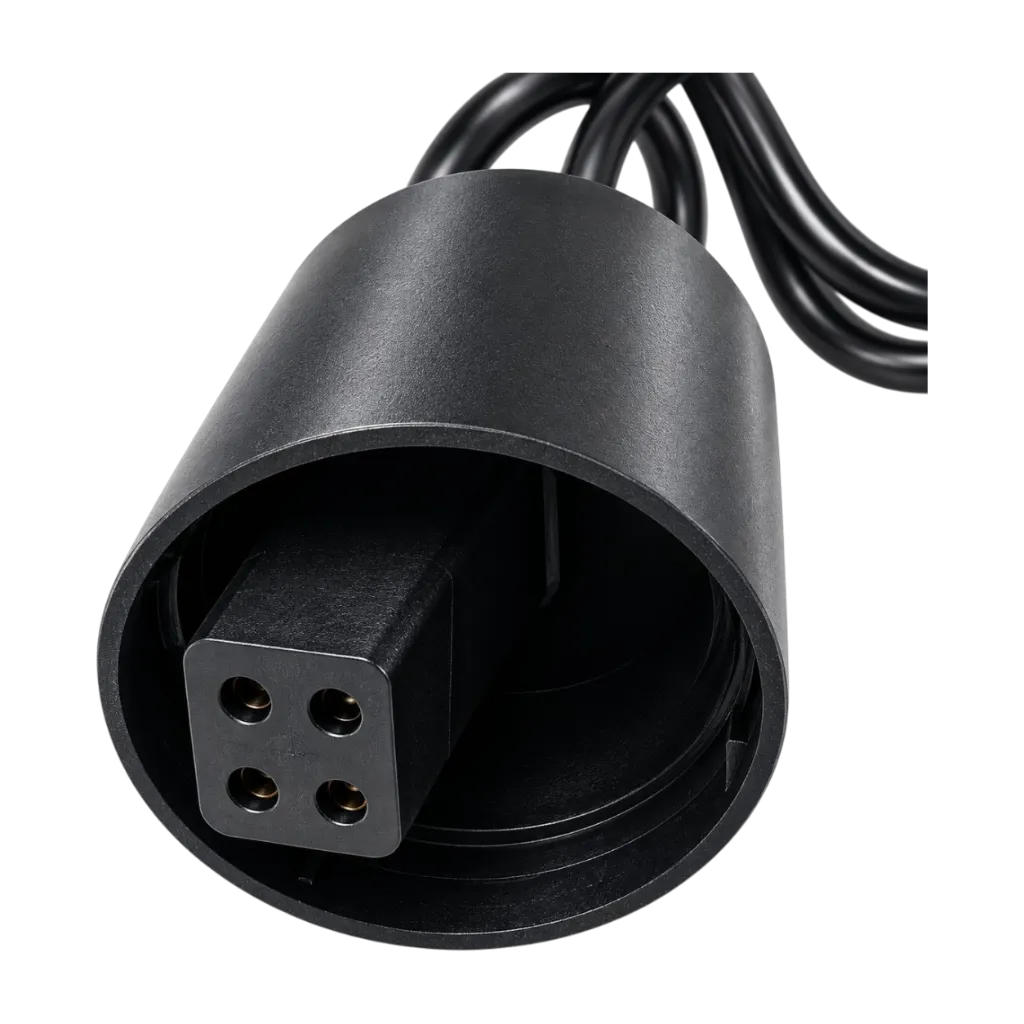

  • Protective Lamp Boot: Insulated terminal cap shields the 4-pin lamp base from moisture, dust, and inadvertent contact.

  • Wall-Mountable Housing: Compact enclosure features dedicated mounting eyelets for secure installation inside cabinets or on walls.

  • Pre-Wired Plug-and-Play Design: Supplied with a standard European mains plug and connected wiring for immediate, tool-free electrical installation.

Technical Characteristics:

  • Product Type: Electronic Ballast Transformer for UV Water Sterilizers

  • Brand: Luxe Style

  • Output Power: 6 W

  • Input Voltage / Frequency: 220–240 V ~ 50 Hz

  • Lamp Operating Voltage: 40–45 V

  • Ambient Operating Temperature (Ta): 0 to +40 °C

  • Compatible Lamp Base: 4 Pins Single Ended

  • Visual Indication: Green operational status LED

  • Power Connection: Europlug (Type C mains plug)

  • Certifications: CE, EAC

  • Housing Material: Flame-retardant industrial plastic

  • Primary Compatibility: Luxe Style 6W UV Water Sterilization Systems

Please note: Always disconnect the transformer from mains power before servicing, cleaning the quartz sleeve, or replacing the UV lamp. Install the unit in a dry, ventilated area within the ambient temperature range of 0 to +40 °C, away from potential water spray, dripping pipes, or condensation.
