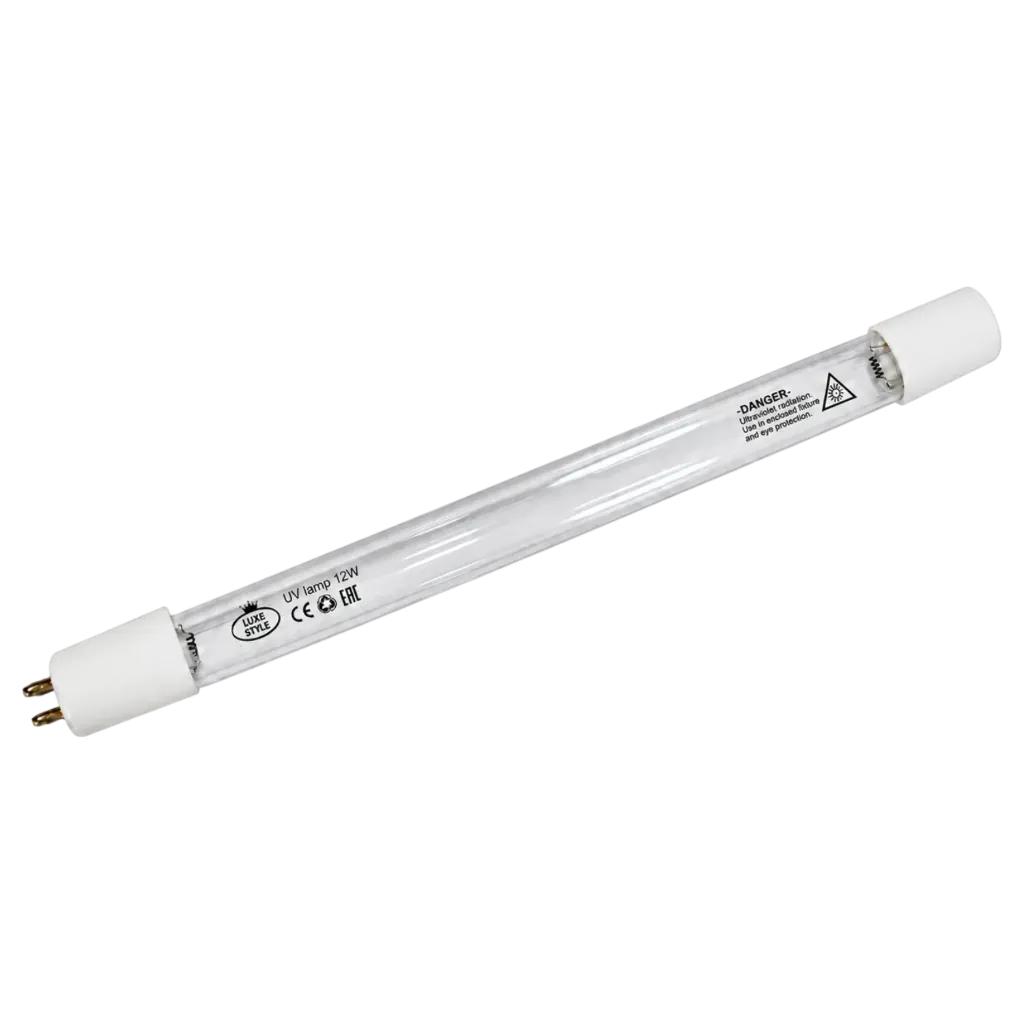

Measuring 287 mm in length, the Luxe Style 12W lamp features a standard 4-pin single-ended base that ensures secure mechanical alignment and rapid electrical connection to the electronic ballast. Rated for an operational lifespan of up to 8,000 hours (approximately 12 months of continuous use), it draws 12 W of power at an operating voltage of 32.4 V and a current of 0.45 A. Timely replacement maintains required germicidal dosages inside the disinfection chamber, preventing microbiological breakthrough in drinking water installations.
Functional Features:
253.7 nm Germicidal Output: Neutralizes pathogenic microorganisms and spores at an intensity of 31 µW/cm² without altering water taste, odor, or composition.
8,000-Hour Operating Life: Delivers up to 12 months of continuous, round-the-clock water disinfection.

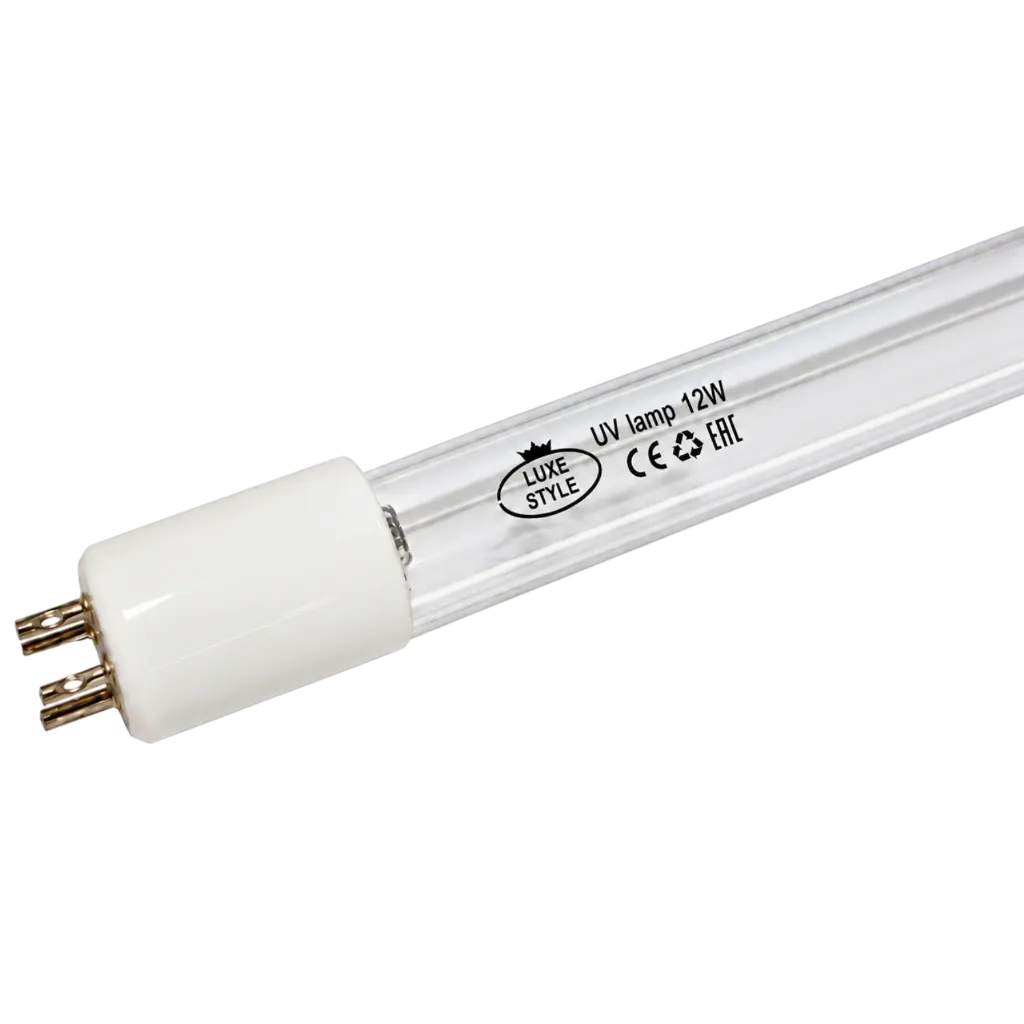

4-Pin Single-Ended Base: Streamlined electrical connection simplifies routine servicing and prevents mounting errors.
Quartz Glass Tube (Ø 15 mm): 287 mm quartz envelope provides optimal UV-C transmission efficiency.
Energy-Efficient 12 W Rating: Operates at 32.4 V and 0.45 A to maintain steady germicidal output with low power draw.
Technical Characteristics:
Product Type: Replacement Germicidal UV Lamp
Brand: Luxe Style
Power Wattage: 12 W
Base / Holder Type: 4 Pins Single Ended
Wavelength: 253.7 nm
UV Intensity (distance = 1 m): 31 µW/cm²
Operational Lifespan: Up to 8,000 hours
Operating Voltage: 32.4 V
Operating Current: 0.45 A
Lamp Length (L): 287 mm
Tube Diameter (Ø): 15 mm
Mercury Content (Hg): 8 mg
Please note: Replace the UV lamp every 12 months (8,000 operating hours); germicidal output degrades over time even while visible illumination continues. Do not touch the quartz surface with bare hands during installation—wear clean cotton gloves. If fingerprints contact the glass, clean the envelope with an alcohol wipe before inserting it into the quartz sleeve.
