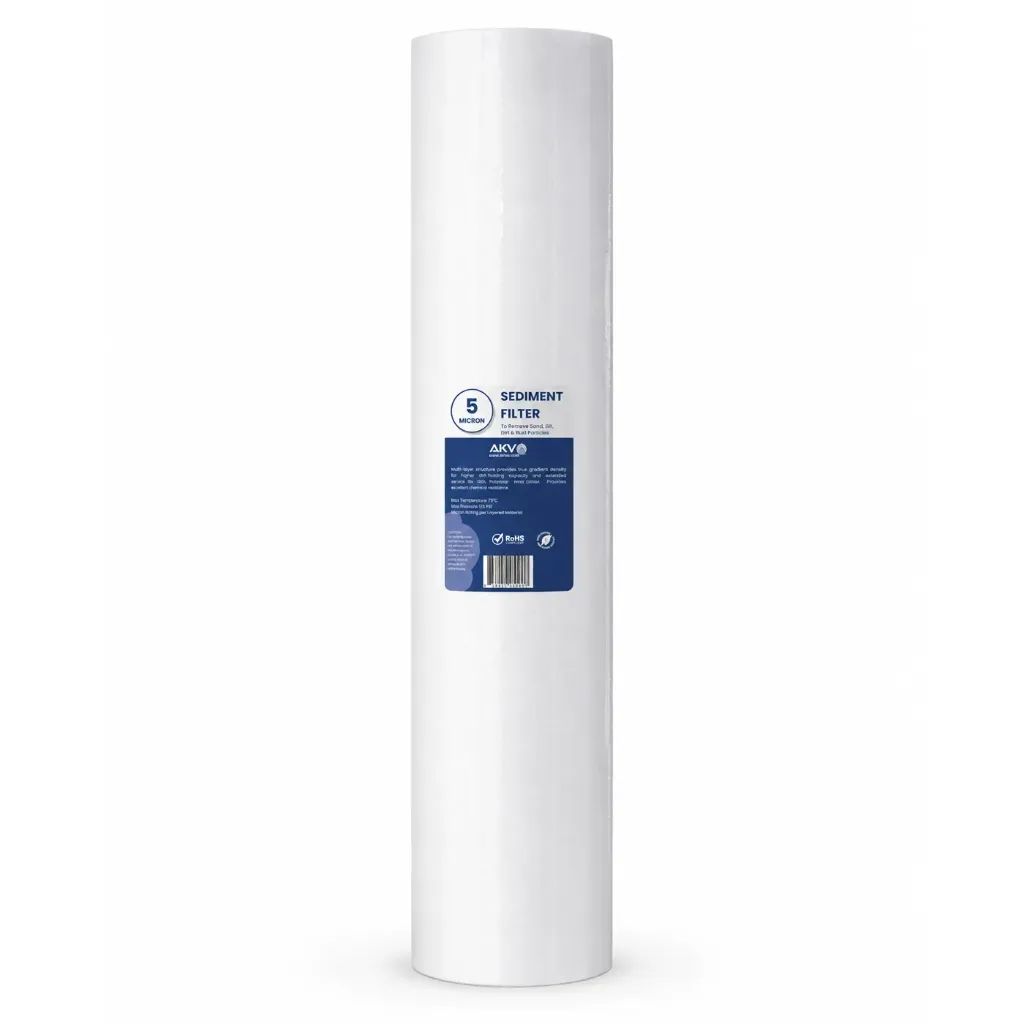

AKV PP Sediment Filter 4.5" x 20" 5 mic for Big Blue

AKV PP Sediment Filter 4.5" x 20" 5 mic for Big Blue

A high-capacity replacement filter element designed for heavy-duty mechanical filtration in whole-house and high-flow industrial systems. Manufactured from 100% pure melt-blown polypropylene, this Big Blue cartridge captures suspended solids, sand, silt, rust, and dirt particles down to 5 microns, protecting downstream water treatment equipment and plumbing systems from premature clogging.


12.40 € 12.40 € (Tax included)
12.40 € (Tax included)

  • Packaging
Add to cart
Buy now
Terms and Conditions

Internal Reference: 423652
Barcode: 4751051210417

Featuring a true gradient-density multi-layer structure, the large-diameter cartridge delivers exceptional dirt-holding capacity and ultra-low pressure drop at high flow rates. Outer layers trap larger debris while the inner core retains micro-particulates, ensuring uniform depth filtration across the entire media volume. Free from chemical binders and solvents, it operates reliably across standard operating pressures and temperatures as a heavy-duty primary sediment barrier.

Removal Capabilities:

  • Sediment Filtration: Traps microscopic insoluble particles down to 5 microns, including rust flakes and fine sediment.

  • Suspended Solids Reduction: Retains high volumes of sand, silt, clay, and soil particles from municipal or well water supplies.

  • Equipment Protection: Prevents physical blockage of whole-house softening resins, iron-removal media, and delicate downstream filters.

  • Turbidity Elimination: Significantly reduces water cloudiness and mechanical haziness to deliver clear pre-filtered water throughout the facility.

Technical Characteristics of the Cartridge:

  • Product Type: High-Flow Melt-Blown Polypropylene Sediment Filter Cartridge

  • Material Composition: 100% Pure Polypropylene

  • Structure: Multi-layer true gradient density

  • Filtration Rating: 5 micron

  • Standard Form Factor: 20 inches x 4.5 inches (Standard Big Blue 20" / BB20)

  • Compatibility: Standard 20-inch Big Blue filter housings

  • Standard Packaging: Individual wrapper

Recommended Operational Conditions:

  • Maximum Operating Temperature: 77°C (170°F)

  • Maximum Operating Pressure: 8.6 bar (125 psi)

  • Recommended Service Flow Rate: 40–60 L/min

  • Recommended Replacement Interval: 3–6 months

Please note: To maintain optimal system flow rates and protect downstream filters, replace the cartridge when a visible pressure drop occurs or at the recommended service interval.
