Electronic Ballast Transformer for Luxe Style 55W UV Filter

The Luxe Style 55W electronic ballast transformer is an original replacement power supply unit engineered specifically for whole-house and high-capacity Luxe Style 55W ultraviolet water disinfection systems. Designed to provide reliable lamp ignition and maintain optimal electrical parameters, the power supply unit stabilizes operating current and voltage, protecting the UV lamp from line surges and ensuring conditions for continuous, steady operation. Housed in a durable, flame-retardant plastic casing equipped with integrated mounting tabs, the unit enables neat wall- or bracket-mounting next to filtration manifolds and commercial water treatment lines.

28.93 € 28.93 € (Tax included)
28.93 € (Tax included)

Add to cart
Buy now
Terms and Conditions

Internal Reference: 452863
Barcode: 1872025000278

Operating on a standard 220–240 V / 50 Hz power input, the unit converts mains electricity into the precise operational current (0.5 A) and voltage (90.2 V) required for 55W high-output germicidal UV lamps. It comes fully pre-wired with an integrated LED operational indicator for rapid visual status monitoring, a grounded European power plug (Schuko), and a moisture-resistant lamp connector boot designed to seat securely over the lamp's 4-pin single-ended base. This plug-and-play architecture simplifies maintenance and guarantees electrical safety during regular filter operation.

Functional Features:

  • Stable Electrical Regulation: Delivers consistent 0.5 A operating current and 90.2 V lamp voltage control to protect the 55W UV lamp and preserve its service life.

  • LED Status Monitoring: Built-in indicator light provides immediate visual confirmation of power supply and lamp operation.

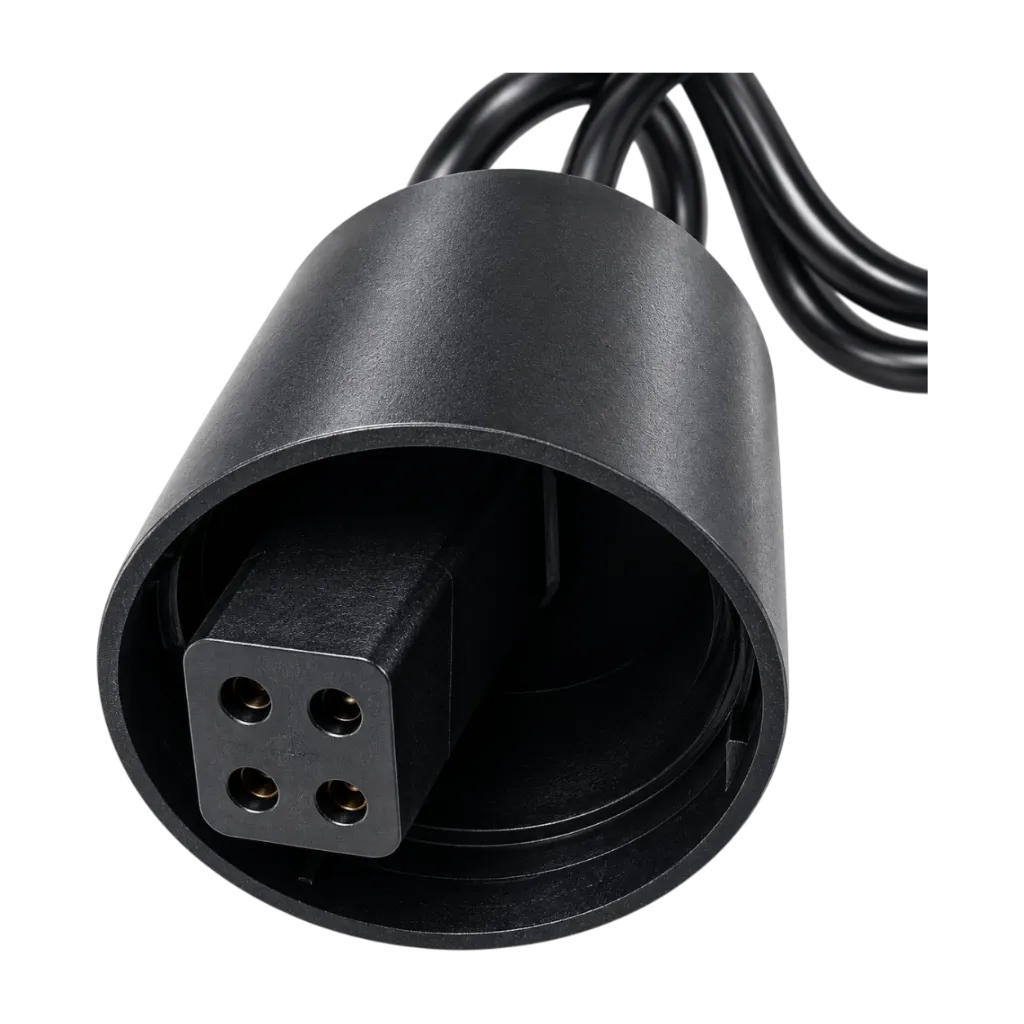

  • Moisture-Resistant Lamp Boot: Insulated terminal cap shields the 4-pin lamp base from moisture, dust, and inadvertent contact.

  • Grounded European Plug: Pre-wired with a grounded mains plug (Schuko / Type F) for safe electrical operation.

  • Wall-Mountable Housing: Compact rectangular enclosure features dedicated mounting eyelets for secure installation inside cabinets or on walls.

Technical Characteristics:

  • Product Type: Electronic Ballast Transformer for UV Water Sterilizers

  • Brand: Luxe Style

  • Output Power: 55 W

  • Input Voltage / Frequency: 220–240 V ~ 50 Hz

  • Lamp Operating Voltage: 90.2 V

  • Lamp Operating Current: 0.5 A

  • Compatible Lamp Base: 4 Pins Single Ended

  • Visual Indication: Operational status LED

  • Power Connection: Grounded European plug (Schuko / Type F)

  • Housing Material: Flame-retardant industrial plastic

  • Primary Compatibility: Luxe Style 55W UV Water Disinfection Systems

Please note: Always disconnect the transformer from mains power before servicing, cleaning the quartz sleeve, or replacing the UV lamp. Install the unit in a dry, ventilated indoor area away from potential water spray, dripping pipes, or condensation. If replacing a malfunctioning transformer, inspect the quartz sleeve seals and housing O-rings to ensure moisture ingress was not the root cause.
