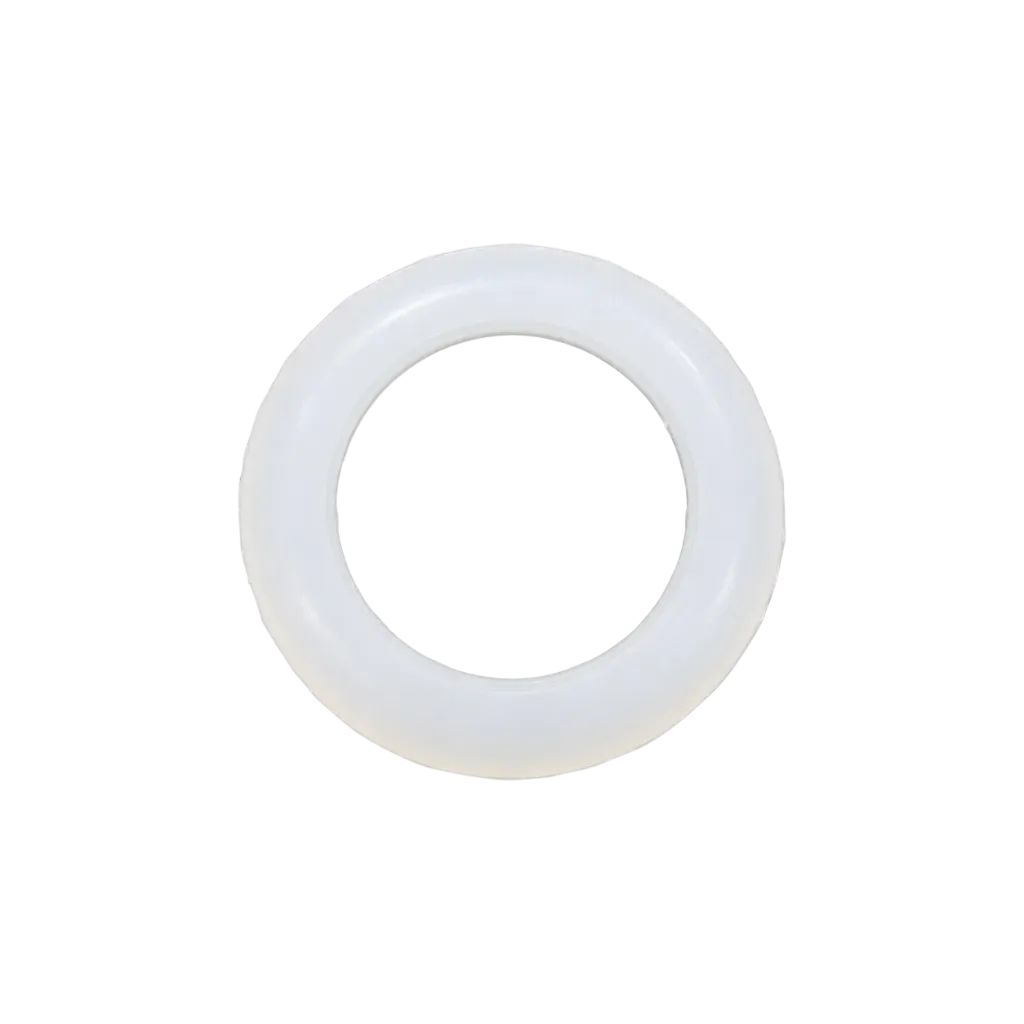

Quartz Sleeve Silicone Gasket for UV 25W–150W Philips / Luxe Style

The replacement quartz sleeve silicone gasket for 25W–150W UV disinfection systems is a heavy-duty sealing component engineered to provide a reliable, leak-proof barrier around standard 23 mm quartz sleeves in whole-house and commercial water sterilization units. Designed for compatibility with Luxe Style, Philips, and equivalent high-output UV systems, it forms a tight compression seal between the quartz sleeve and the stainless steel reactor head or threaded compression gland. Fabricated from pure, food-grade silicone elastomer, the gasket retains its elasticity, compression recovery, and structural integrity under continuous hydraulic pressure, operating heat, and intensive germicidal UV-C exposure.

1.24 € 1.24 € (Tax included)
1.24 € (Tax included)

Add to cart
Buy now
Terms and Conditions

Internal Reference: 5003248
Barcode: 1872025003248

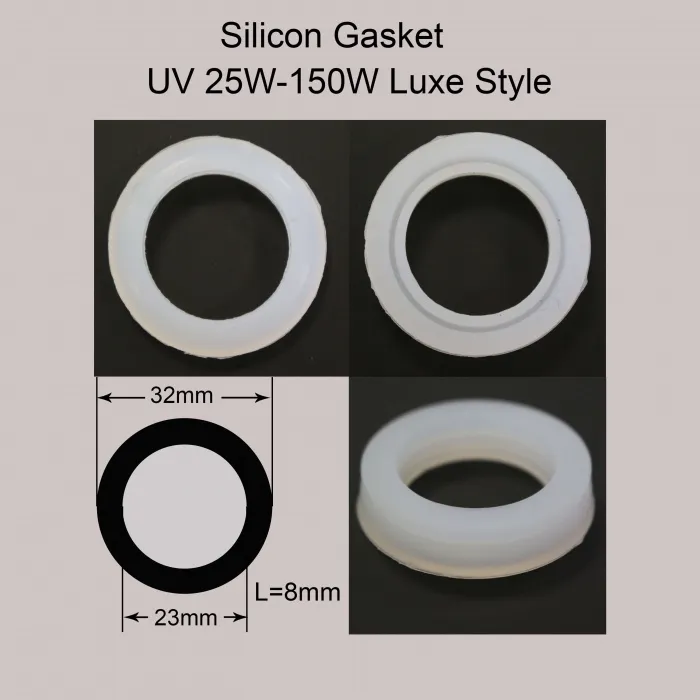

Engineered with enlarged dimensions—an outer diameter of 32 mm, an inner diameter of 23 mm, and a thickness/height of 8 mm—this stepped collar gasket provides superior seating stability and even compression across the sleeve collar. Its resilient silicone formulation resists drying, hardening, cracking, and deformation, preventing pressurized water from bypassing the seal and contacting the lamp terminal or internal chamber electronics. Replacing the gasket during scheduled sleeve cleanings or annual lamp maintenance ensures hydraulic reliability and prevents costly water damage.

Functional Features:

  • High-Pressure Hydraulic Sealing: Provides a dependable compression barrier between the 23 mm quartz sleeve and the reactor body to stop leaks under line pressure.

  • UV-C & Thermal Stability: High-grade silicone elastomer withstands sustained ultraviolet exposure and operational heat without turning brittle or degrading.

  • Stepped Profile (8 mm Height): Heavy-duty 8 mm thickness distributes mechanical clamping force evenly under compression nuts to eliminate focal stress points.

  • Food-Safe & Non-Toxic: Chemically inert construction does not impart taste, odor, or chemical leachates into purified water lines.

  • Broad System Fit (25W–150W): Direct replacement for medium- to high-capacity Luxe Style (25W, 30W, 35W, 55W, 150W) and compatible Philips disinfection chambers.

Technical Characteristics:

  • Product Type: Replacement Quartz Sleeve Silicone Gasket / O-Ring Collar

  • Compatible Systems / Brands: Luxe Style, Philips, and equivalent UV water sterilizers

  • Compatible Wattage Range: 25W to 150W (including 25W, 30W, 35W, 55W, 150W)

  • Outer Diameter (OD): 32 mm

  • Inner Diameter (ID): 23 mm

  • Height / Thickness (L): 8 mm

  • Material: Pure Food-Grade Silicone Elastomer

  • Color: Translucent White

  • Primary Application: Quartz sleeve compression seal for domestic and commercial UV chambers

Please note: Inspect the silicone gasket whenever the quartz sleeve is extracted for descaling or during annual lamp servicing. Replace the gasket if it displays signs of flattening, stiffness, micro-cracking, or mineral encrustation to maintain chamber integrity. Ensure the 23 mm sleeve slides smoothly into the gasket without pinching. Hand-tighten compression nuts firmly; avoid using wrenches or excessive torque, which can distort the silicone collar or fracture the quartz sleeve.
