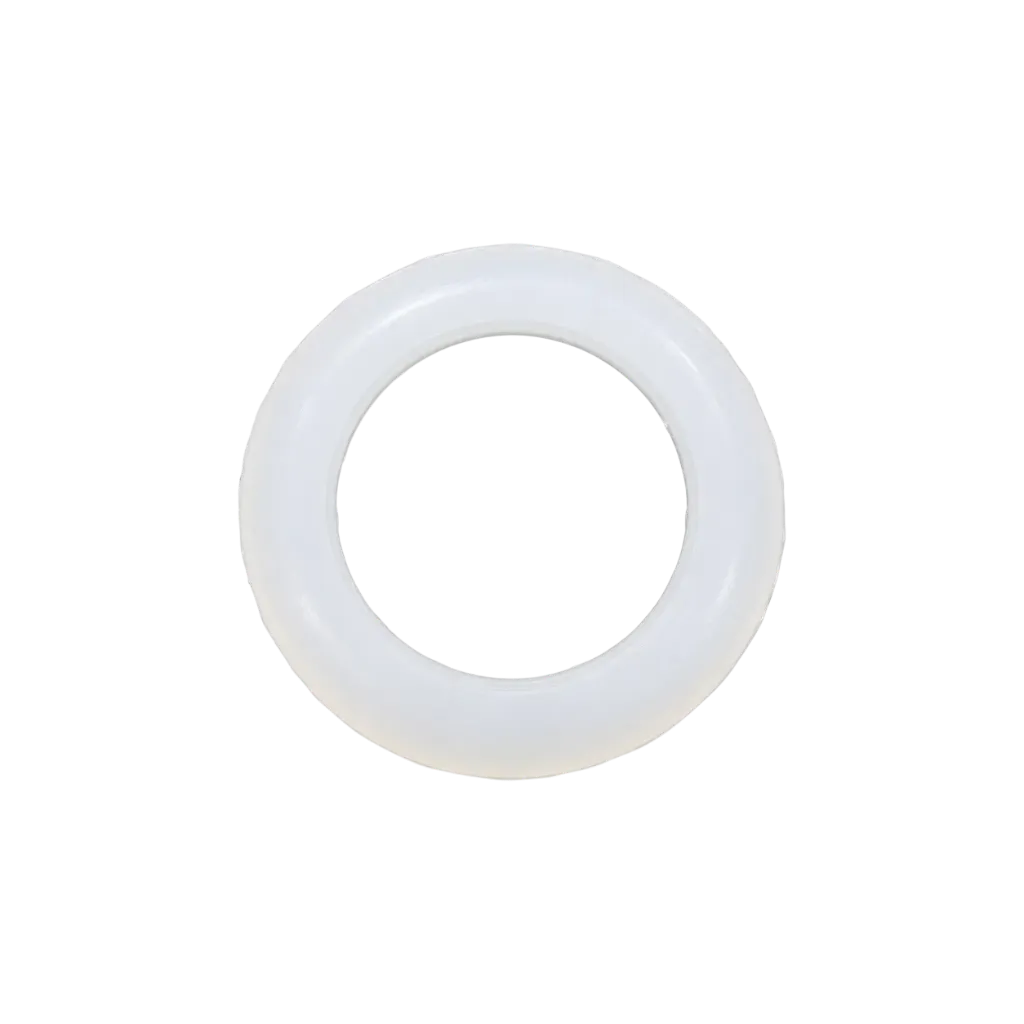

Quartz Sleeve Silicone Gasket for UV 6W–16W Philips / Luxe Style

The replacement quartz sleeve silicone gasket for 6W–16W UV disinfection systems is an essential sealing component designed to ensure a hermetic, leak-proof seal around the quartz sleeve in residential and commercial water sterilization units. Engineered for compatibility with Luxe Style and Philips UV systems, it forms a compression barrier between the quartz sleeve and the stainless steel reactor body or compression nut. Manufactured from high-grade, food-safe silicone elastomer, the gasket maintains its elasticity and structural integrity under constant exposure to water pressure, temperature variations, and germicidal UV-C radiation.

1.24 € 1.24 € (Tax included)
1.24 € (Tax included)

Add to cart
Buy now
Terms and Conditions

Internal Reference: 5003255
Barcode: 1872025003255

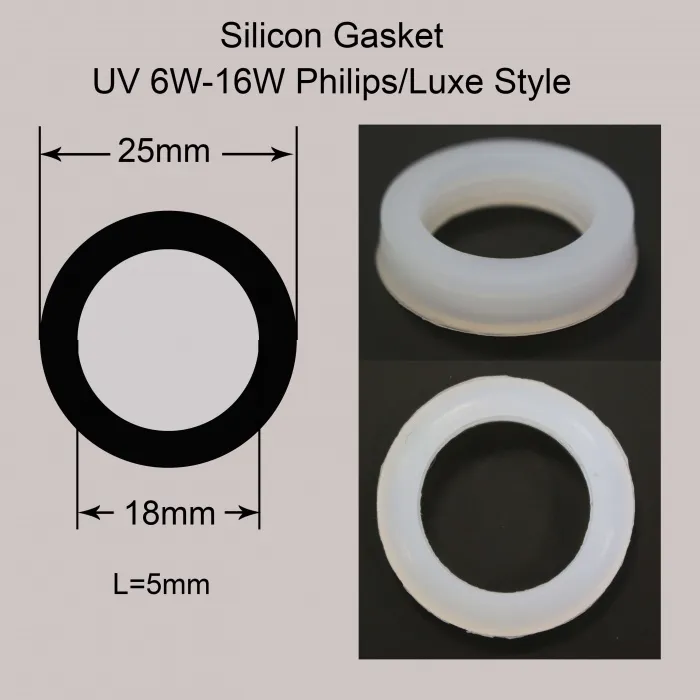

Featuring precise dimensions with an outer diameter of 25 mm, an inner diameter of 18 mm, and a thickness/height of 5 mm, this stepped seal seats securely without twisting or deforming during assembly. Its chemical- and UV-resistant formulation prevents drying, cracking, and premature hardening, effectively safeguarding the internal electrical components and UV lamp from water ingress. Replacing the gasket during scheduled annual lamp changes or sleeve cleanings guarantees long-term sealing reliability and prevents system leaks.

Functional Features:

  • Reliable Hydraulic Seal: Creates a tight, durable compression seal between the quartz sleeve and the UV reaction chamber to prevent water leakage.

  • UV and Temperature Resistance: High-grade silicone compound resists degradation, hardening, and brittleness caused by continuous UV-C radiation and operating heat.

  • Food-Safe & Chemically Inert: Does not leach substances, odors, or taste into treated drinking water.

  • Anti-Deformation Design: 5 mm thickness and profile provide uniform pressure distribution under compression nuts.

  • Wide System Compatibility: Direct replacement fit for 6W, 11W, 12W, and 16W systems using standard quartz sleeves.

Technical Characteristics:

  • Product Type: Replacement Quartz Sleeve Silicone Gasket / O-Ring Seal

  • Compatible Systems / Brands: Luxe Style, Philips, and equivalent UV water sterilizers

  • Compatible Wattage Range: 6W, 11W, 12W, 16W

  • Outer Diameter (OD): 25 mm

  • Inner Diameter (ID): 18 mm

  • Height / Thickness (L): 5 mm

  • Material: Pure Food-Grade Silicone Elastomer

  • Color: Translucent White

  • Application: Quartz sleeve sealing collar in domestic and commercial UV chambers

Please note: Inspect the silicone gasket every time the quartz sleeve is removed for cleaning or during the annual UV lamp replacement. If the gasket shows any signs of flattening, brittleness, cracking, or mineral buildup, replace it immediately to prevent water intrusion into the lamp chamber. Hand-tighten the compression nuts firmly, and avoid over-torquing with metal tools to prevent pinching the silicone or cracking the quartz glass.
