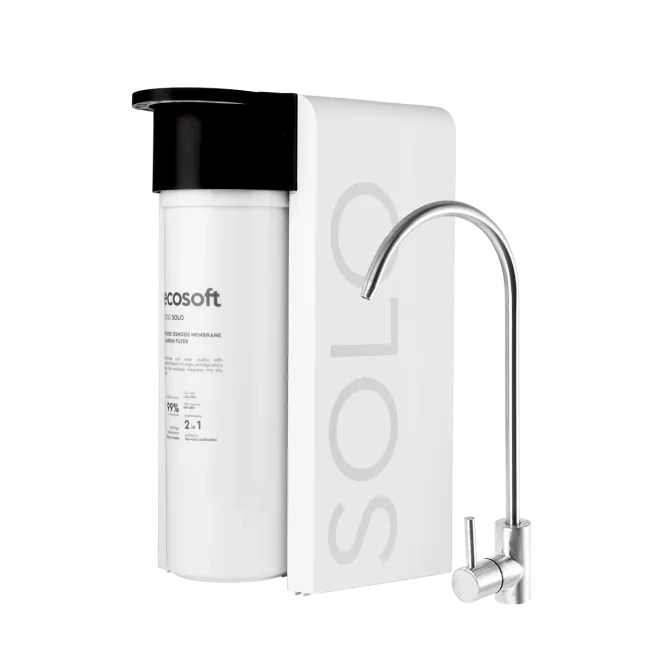

Ecosoft CROSS Solo Direct Flow Reverse Osmosis System

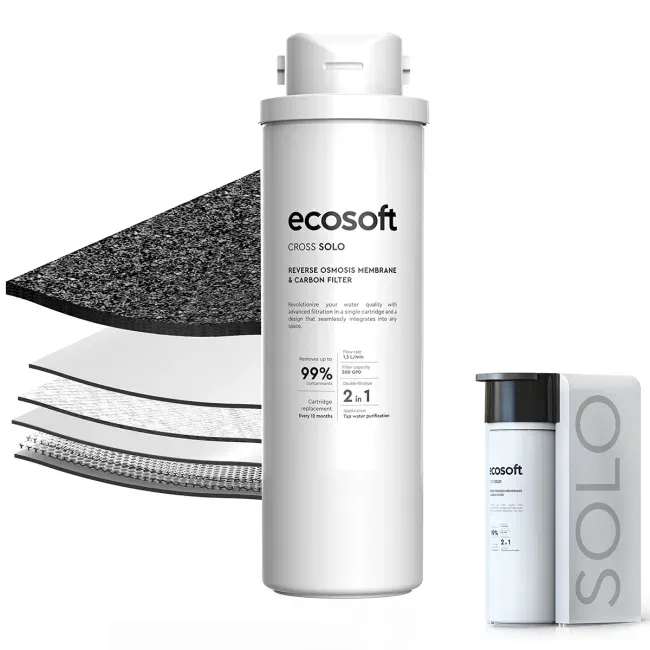

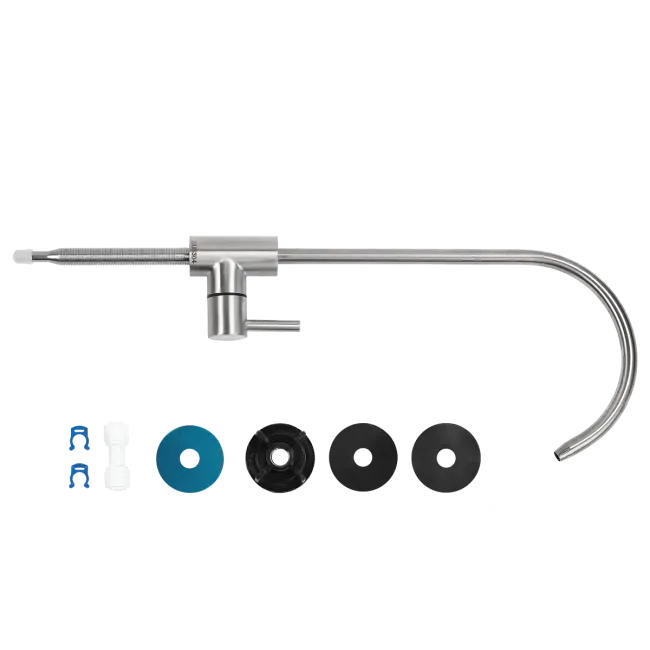

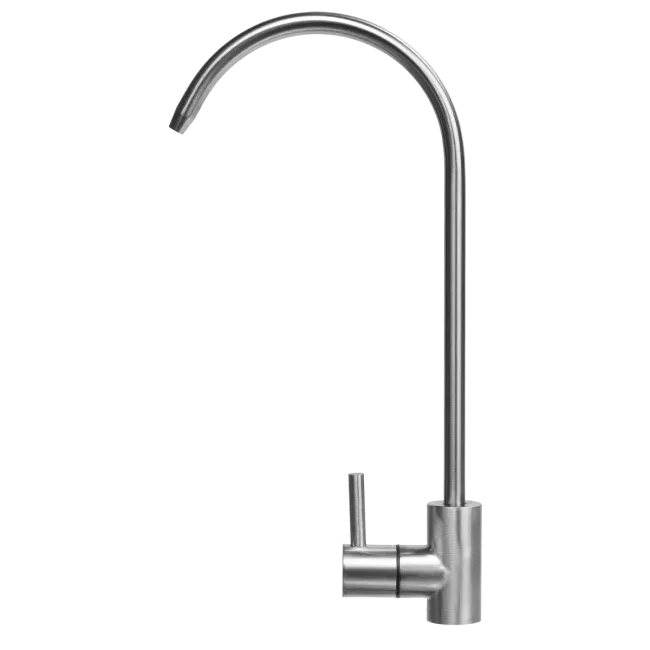

Featuring an all-in-one 2-in-1 replacement cartridge that combines a 500 GPD RO membrane with coconut-shell activated carbon post-filtration, the CROSS Solo simplifies maintenance to a tool-free, 5-minute twist-and-lock procedure. The defining functional highlights include an intelligent control display with visual and audible alerts for cartridge replacement, automatic membrane flushing to prevent membrane fouling, built-in leak protection, and an auto shut-off feature after 30 minutes of continuous operation. With its sleek dimensions (300 × 140 × 200 mm), it fits effortlessly under the sink while delivering high direct-flow performance directly to the included modern drinking water faucet.

Functional Features:

• Direct-Flow RO Technology: Delivers fresh, purified water instantly at 1.3 L/min (78 L/h) without needing a space-consuming storage tank.

• 2-in-1 Double Filtration: Integrated 500 GPD membrane and activated carbon filter remove 99.8% of contaminants while enhancing taste and odor.

• High Efficiency 50% Recovery: Reduces wastewater by ensuring a 1:1 ratio between purified output and drain water.

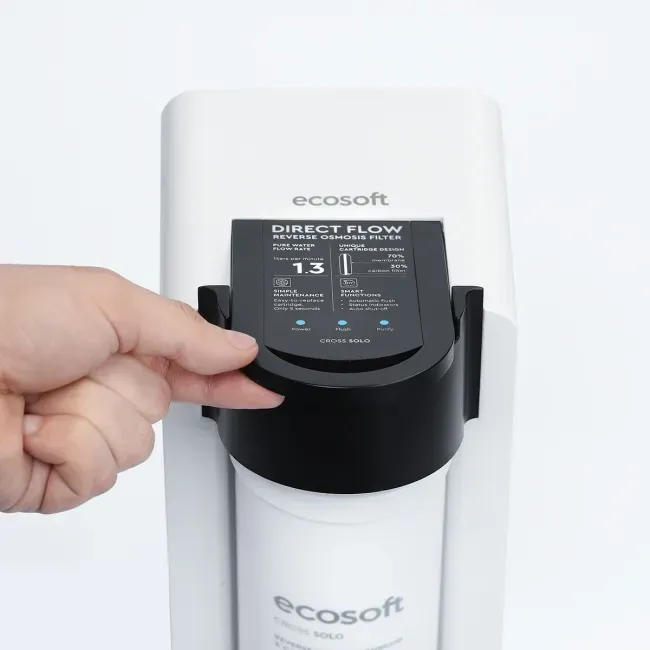

• Smart Alerts & Auto Flushing: Equipped with LED indicators and audio beeps for filter changes, alongside automatic membrane flushing for optimal performance.

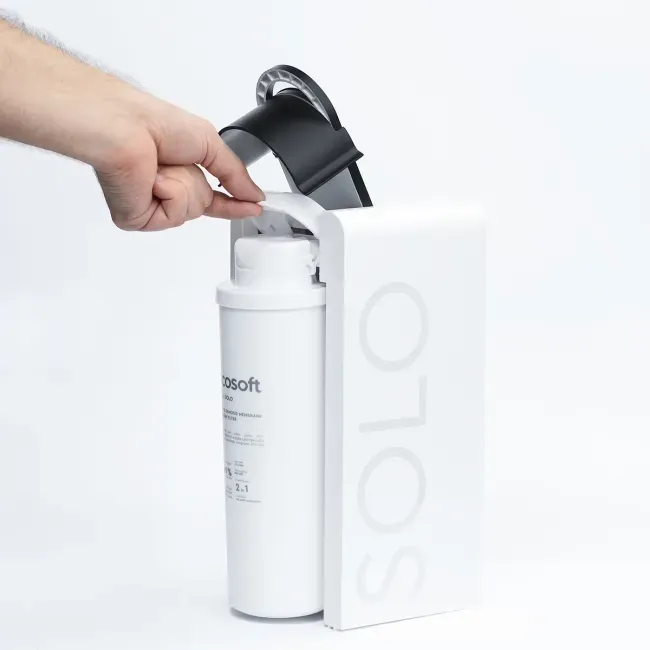

• Leak Protection & Tool-Free Maintenance: Includes a dedicated leak sensor and auto water shut-off mechanism for safe, tool-free cartridge replacement in under 5 minutes.

Technical Characteristics of the Filter:

• Product Type: Direct-Flow Reverse Osmosis System

• Model Name: Ecosoft CROSS Solo (MO1500PECO)

• Flow Capacity / Speed: 78 L/h (1.3 L/min; fills a 200 mL glass in 10 s)

• Membrane Capacity: 500 GPD

• Recovery Rate: 50%

• Filtration Stages: 2 stages (1 combined 2-in-1 cartridge)

• Smart Functions: LED display, audio alerts, auto flushing, 30-min auto shut-off, leak sensor

• Operating Water Pressure: 1–4 bar (pressure regulator mandatory)

• Operating Water Temperature: Cold water (+4 to +30 °C)

• System Dimensions (H × W × D): 300 × 140 × 200 mm

• Replacement Cartridge Code: CSVPDRO500

Please note: Replace the 2-in-1 combination cartridge every 12 months or when prompted by the system's visual/audible filter change indicators. After replacing the cartridge, press and hold the RESTART button for 5 seconds to reset the status counter. It is recommended to pour the first two morning glasses of water down the drain or use them for watering plants, as natural membrane diffusion during overnight downtime can temporarily raise TDS levels.
