Ecosoft MO5000 4" Commercial Reverse Osmosis System

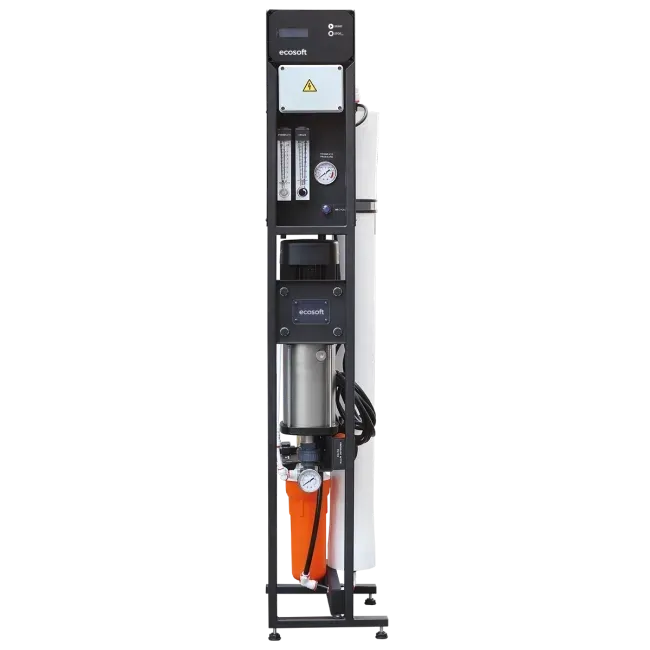

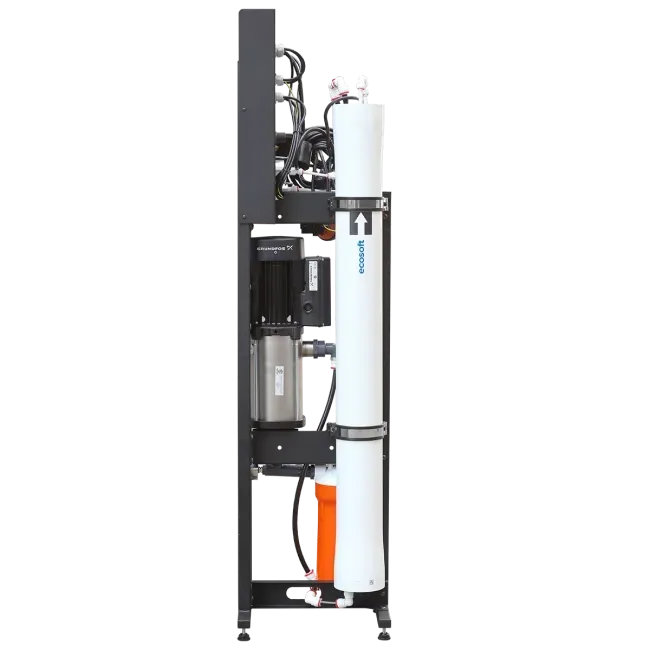

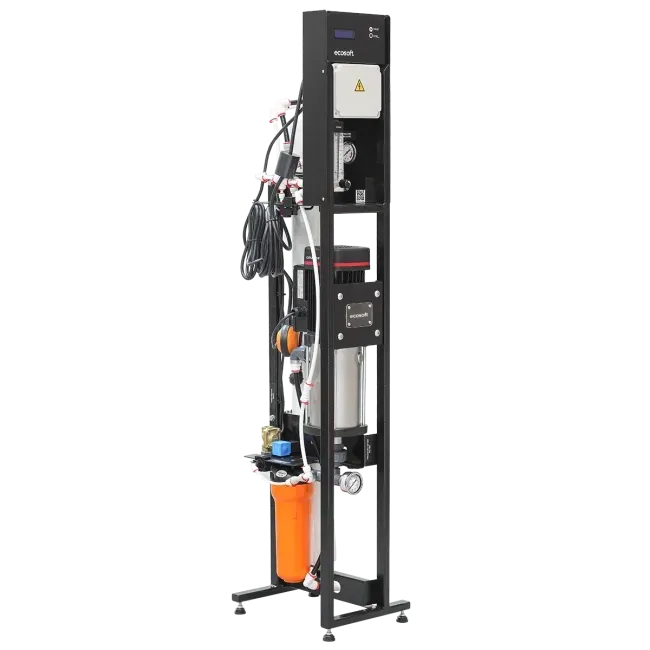

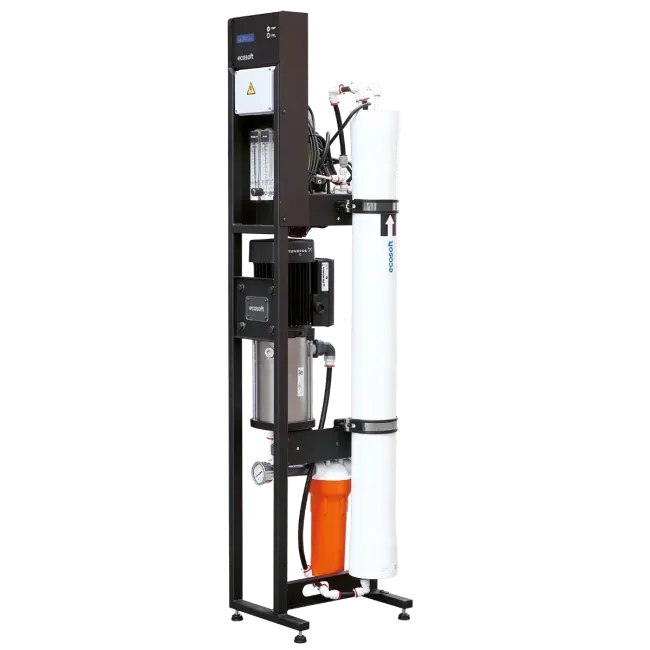

The Ecosoft MO5000TP5 is an ultra-compact, high-efficiency commercial reverse osmosis system engineered to deliver up to 6,000 liters per day (nominal 200–300 L/h) of high-purity demineralized water. Designed specifically for tight utility rooms, laboratories, commercial kitchens, steam boilers, breweries, and car washes, this space-saving unit reduces installation footprint by up to 55% compared to conventional commercial RO systems. The assembly is built around a heavy-duty powder-coated steel frame and features an energy-efficient Grundfos® CM 1-10 high-pressure pump (IE4 / A+ class) coupled with a high-pressure 300 psi 4040 membrane pressure vessel to ensure continuous, vibration-damped, low-noise operation.

1,611.57 € 1,611.57 € (Tax included)
1,611.57 € (Tax included)

Add to cart
Buy now
Terms and Conditions
Documents
Instruction manual Ecosoft Commercial RO Systems Technical data sheet Ecosoft MO5000 Comparasation table MO5000TP5. MO6500TP5, MO6500TP6

Internal Reference: MO5000TP5
Barcode: 4820056805468

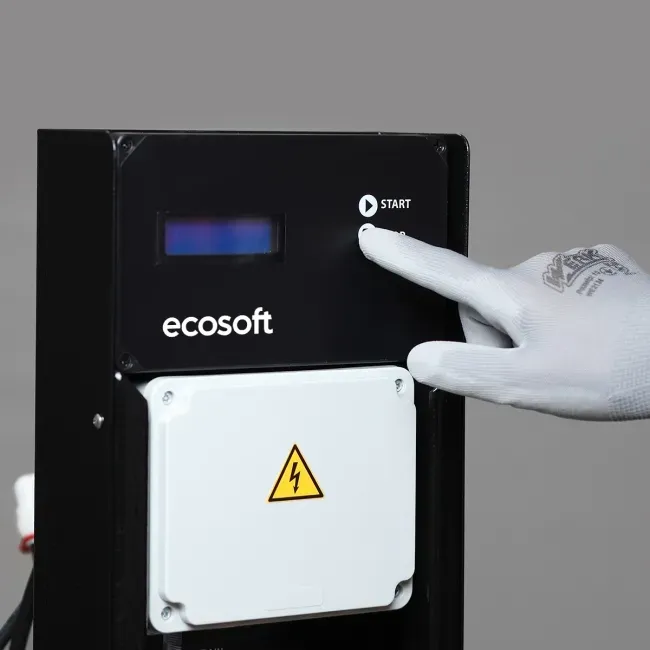

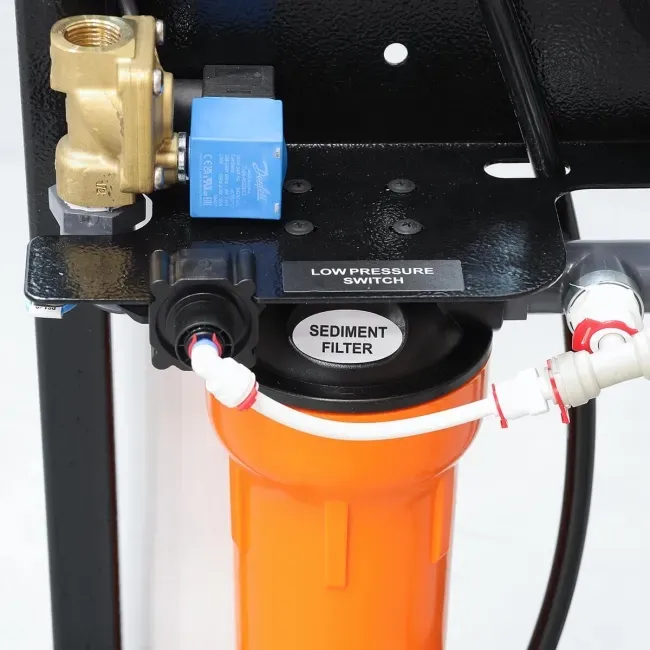

Automated system control is driven by the proprietary Ecosoft OC5000 microprocessor controller with an intuitive backlit LCD interface. The controller provides automated service cycles, dry-run safety shutoff, overpressure protection, and remote stop connectivity, ensuring fail-safe continuous production. Water enters through an integrated 5 micron sediment prefilter (2.5 x 10") and a Danfoss brass solenoid valve before passing into the high-pressure membrane module. An integrated concentrate recycling line with a manual needle valve enables fine-tuned hydraulic recovery up to 75%, significantly minimizing wastewater discharge without sacrificing membrane longevity.

Technical information

Here are most important things about this product.

  • Ultra-Compact Footprint: Saves up to 55% of floor space with an ultra-slim chassis (0.29 x 0.36 x 1.48 m) ideal for point-of-use commercial racks.
  • Intelligent OC5000 Controller: Features digital LCD monitoring, automatic operation logic, dry-run protection, emergency fault shutdowns, and external tank level float integration.

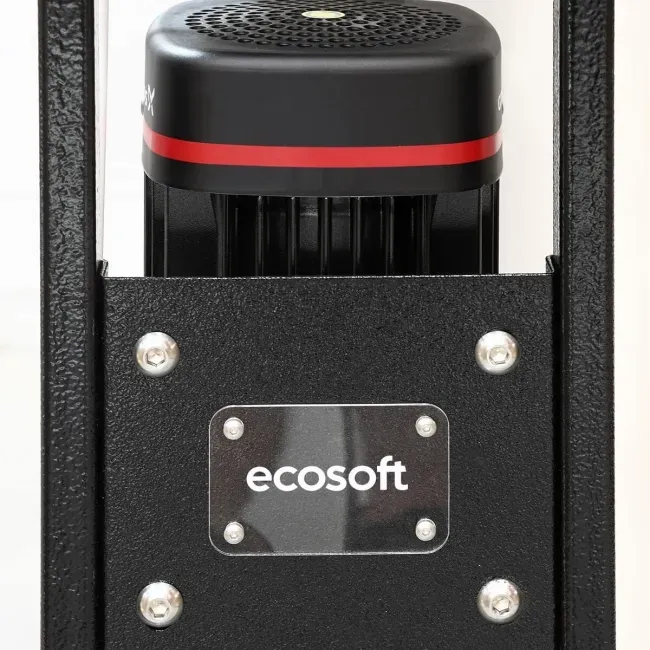

  • Industrial Grundfos Pump: Powered by a premium Grundfos CM 1-10 booster pump delivering low-vibration, high-energy-efficiency (IE4) pressurized flow.

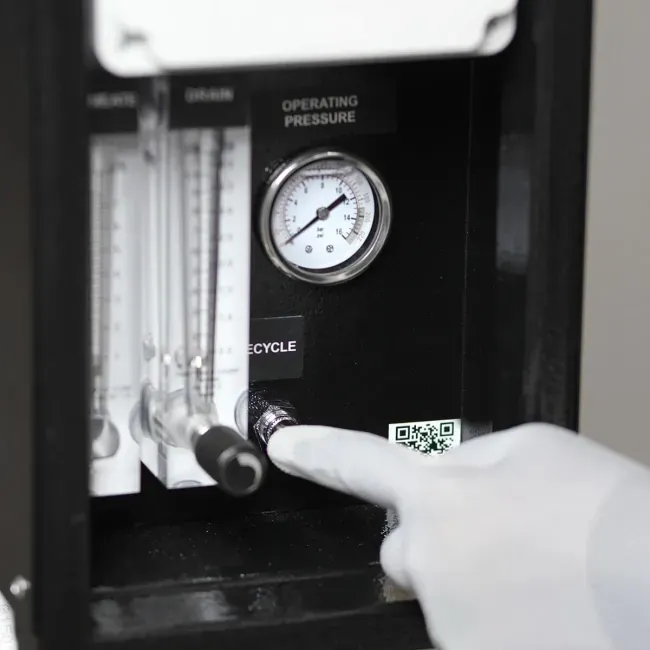

  • Optimized Concentrate Recycling: Features a dedicated concentrate recycle needle valve to achieve up to 75% permeate recovery and minimize sewer effluent.

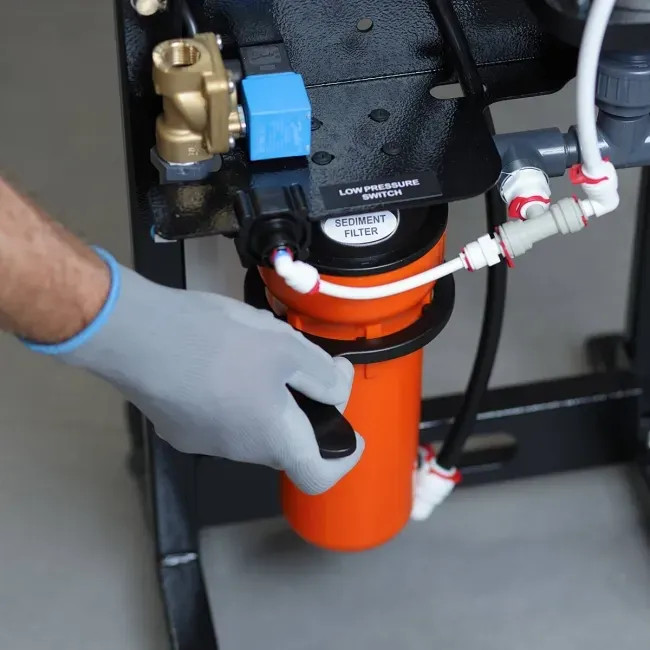

  • Pre-Filtration on Board: Includes a 10" slim housing with a 5 micron melt-blown sediment cartridge to shield the high-pressure pump and membrane from particulate fouling.

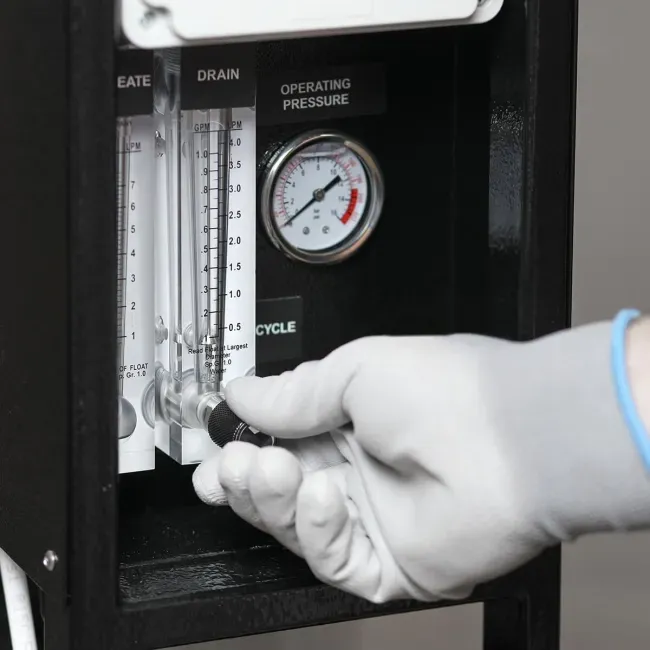

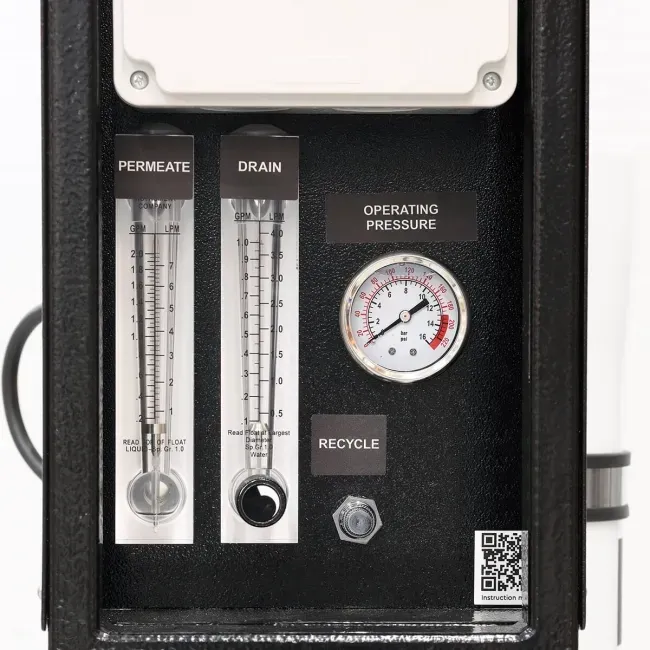

  • Comprehensive Instrumentation: Equipped with two precision panel pressure gauges (inlet pressure and module operating pressure) and dual rotameters for direct permeate and concentrate flow monitoring.
  • European Certification and Standard Build: CE-marked construction using high-grade piping, Danfoss solenoid valves, and standard 230 V single-phase plug-and-play electrical wiring.
  • Product Type: Commercial 4" Reverse Osmosis Water Treatment Unit
  • Manufacturer / Model: Ecosoft / MO5000TP5
  • Nominal Permeate Flow Capacity: 250 L/h (range: 200–300 L/h / 50–80 GPH)
  • Daily Pure Water Output: Up to 6,000 L/day
  • Permeate Recovery (Yield): Up to 75% (for low-scaling feed conditions)
  • Membrane Capacity / Type: 1 x 4" (4040 housing, 300 psi rating; accommodates Filmtec XLE-4040, LCLE-4040, or Ecosoft ELP-4040)
  • High-Pressure Pump: Grundfos CM 1-10
  • Controller: Ecosoft OC5000 with LCD display
  • Operating Pressure: 8–12 bar (Maximum limit: 14 bar)
  • Feed Water Pressure: 2.0–4.0 bar
  • Influent Flow Demand (Service): 320–400 L/h
  • Prefiltration Stage: 2.5 x 10" cartridge filter, 5 micron rating
  • Maximum Feed Water TDS: up to 3,000 mg/L (ppm)
  • Electrical Supply: 230 V, 50 Hz (1 Phase)
  • Nominal Power Consumption: 0.7 kW (max system draw 1.0 kW)

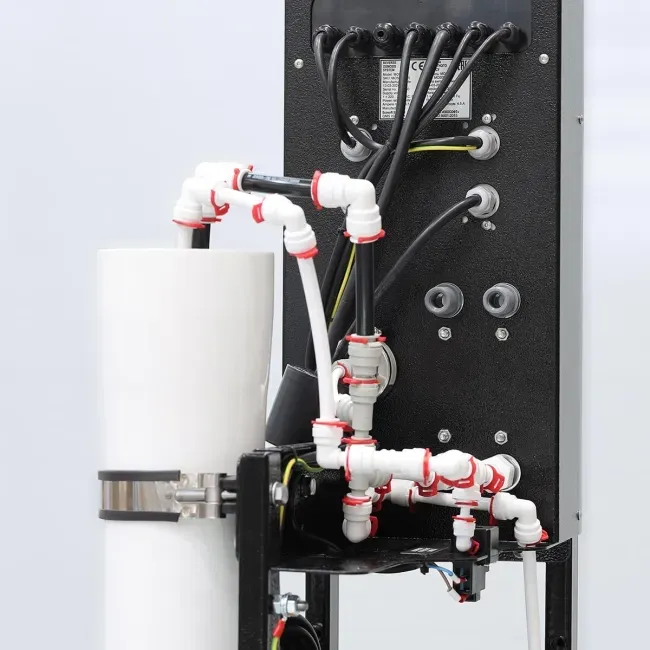

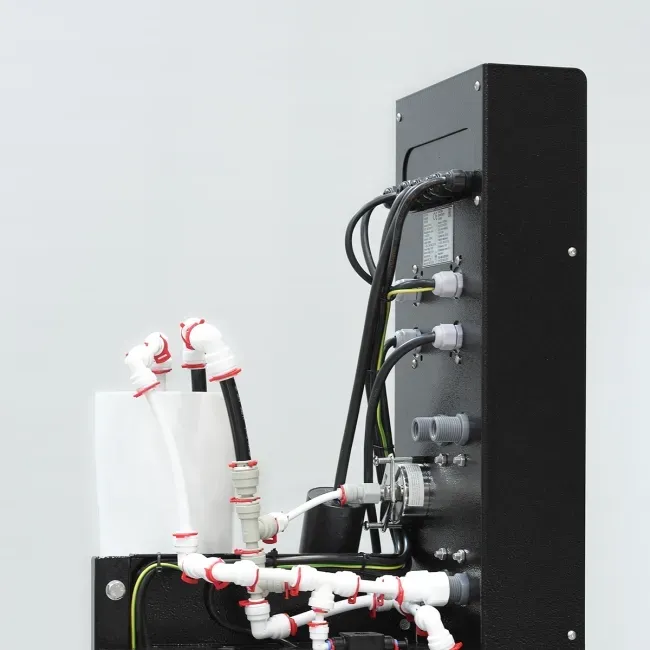

  • Plumbing Connections: Influent water: G 1/2" | Permeate: G 1/2" | Concentrate: G 1/2"
  • Chassis Frame: Powder-coated structural carbon steel

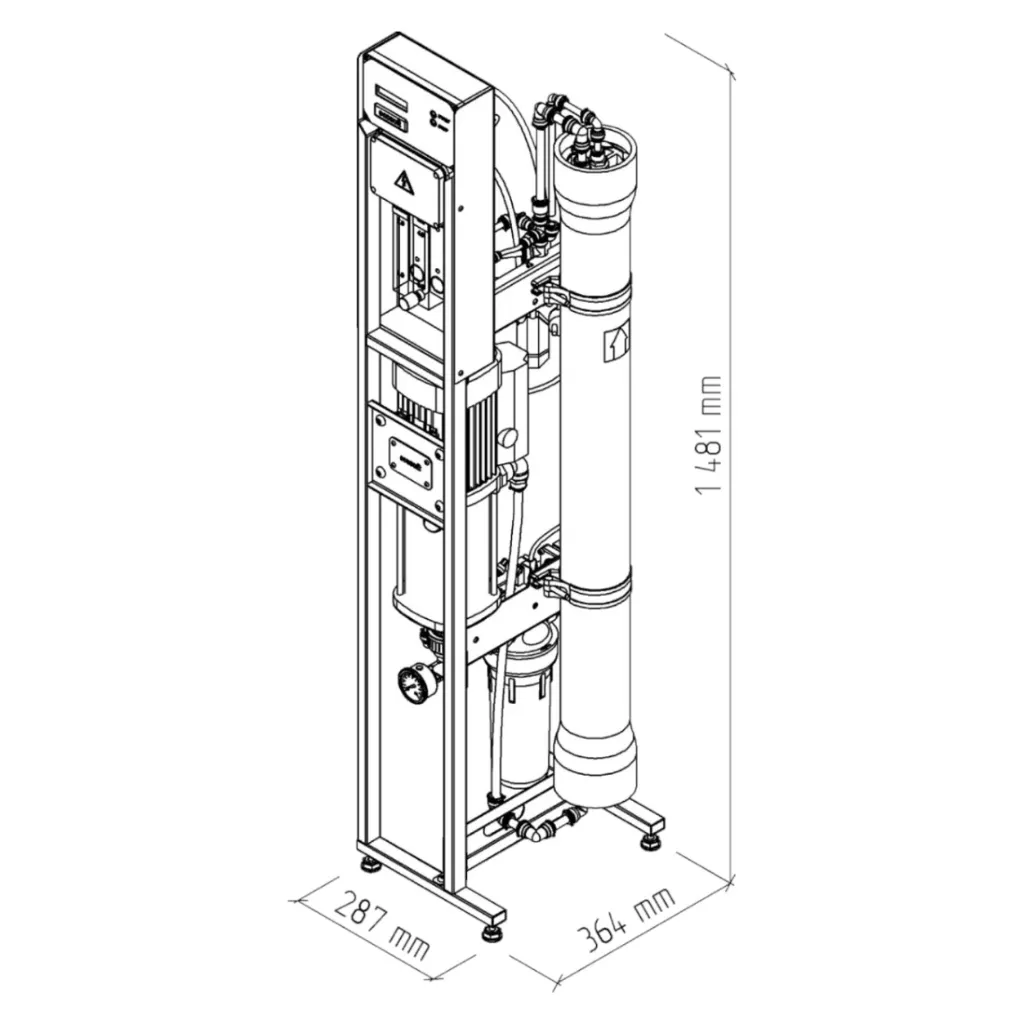

  • Dimensions (Bare System, W x D x H): 0.29 x 0.36 x 1.48 m

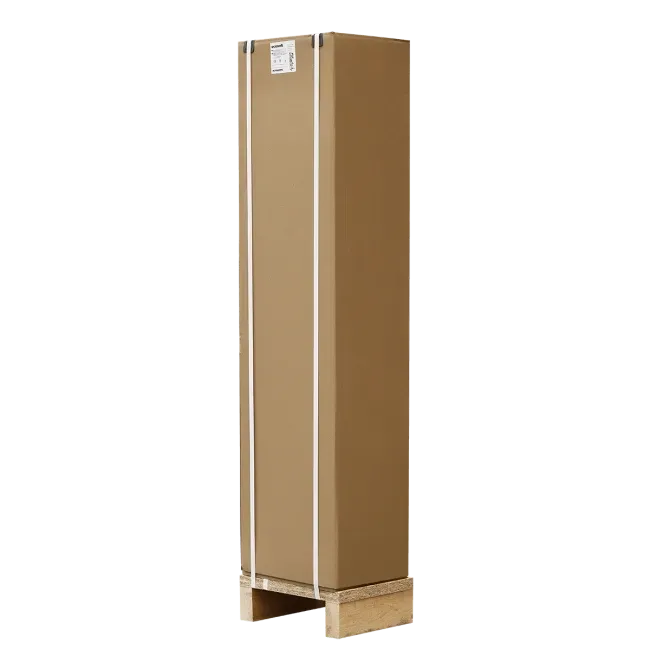

  • Shipping Dimensions (Wooden Crate, W x D x H): 0.30 x 0.40 x 1.65 m
  • Weight (Net / Shipping Crate): 45 kg / 60–70 kg
  • Inlet Water Temperature: +5 to +30 deg C (ambient operational limit up to +40 deg C)
  • Total Dissolved Solids (TDS): Up to 3,000 mg/L
  • Residual Free Chlorine: <= 0.1 mg/L
  • Total Hardness: Up to 3 meq/L (150 mg/L CaCO3)*
  • Total Iron: <= 0.1 mg/L*
  • Manganese: <= 0.05 mg/L*
  • Silica (SiO2): <= 20 mg/L*
  • Chemical Oxygen Demand (TOC): <= 4.0–5.0 mg O2/L
  • Hydrogen Sulfide (H2S): None

*Note: Raw water limits for hardness, iron, and silica may be extended if antiscalant dosing or specialized chemical pretreatment is installed.

  • Steam boiler feed and heating/cooling circuits
  • Microbreweries, craft beverage, and food preparation facilities
  • Commercial laundry and touchless car washes
  • Livestock farming, poultry facilities, and automated watering lines
  • Glass processing and glazing fabrication plants
  • Commercial laboratories, pharmaceutical prep, and central RO loops

Please note: RO membrane elements and permeate storage tanks are ordered separately based on application needs. A feed water analysis is strongly recommended prior to commissioning to verify pre-treatment requirements (softening, carbon filtration, or antiscalant dosing). The system must be connected to an earthed electrical outlet (Schuko Type F, 16 A / 250 V), and the steel chassis must be grounded. After installing new membrane elements, divert all permeate production directly to the drain for a minimum of 15 minutes to flush shipping preservatives before supplying point-of-use tanks.
