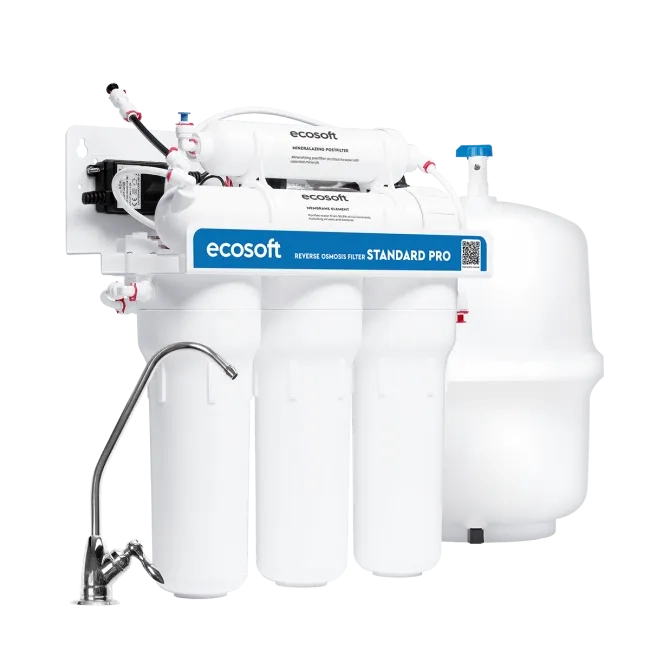

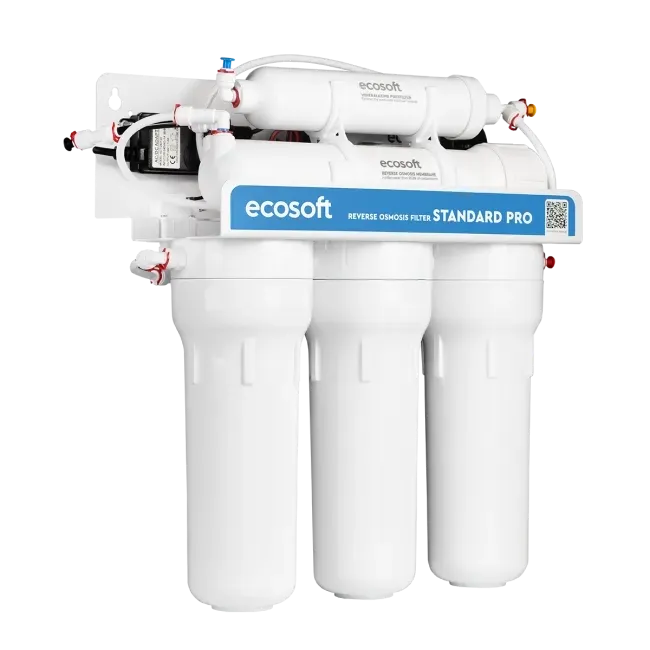

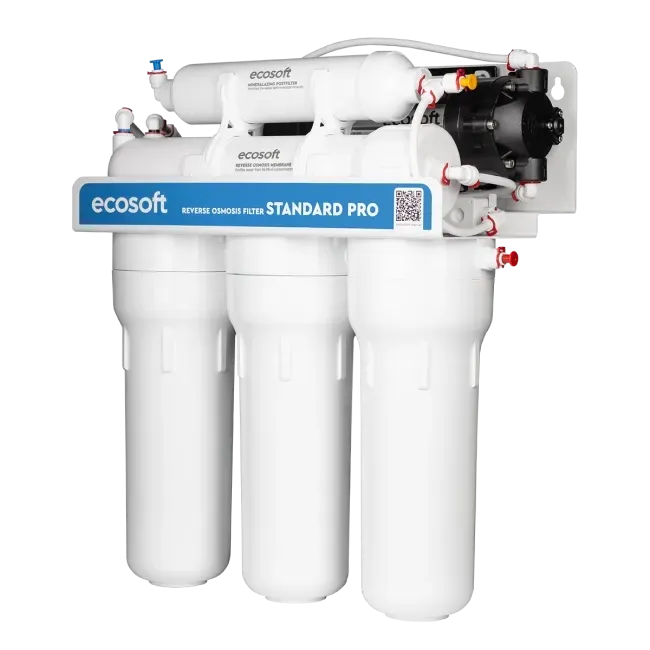

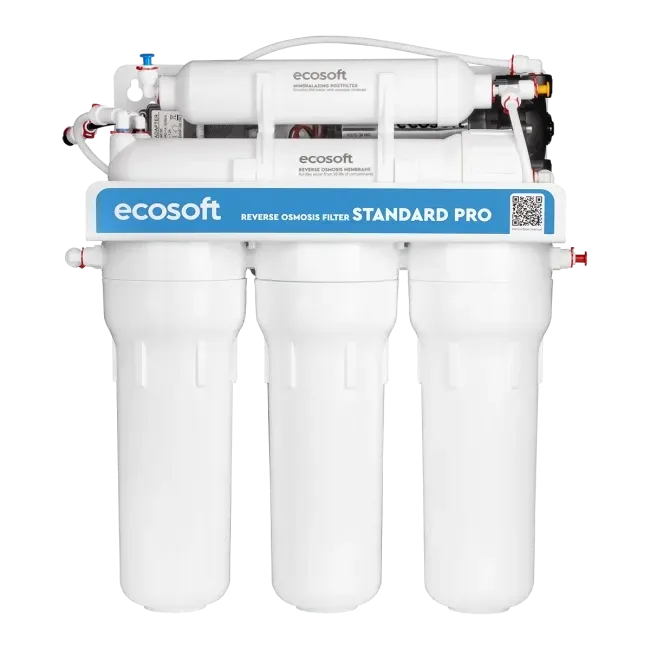

Ecosoft Standard PRO Reverse Osmosis System with Mineralization and Pump

Engineered with durable filter housings, an internal 50 GPD reverse osmosis membrane, a booster pump, and a compact mounting bracket, the Standard PRO MO550MPECOSTD delivers reliable daily purification capacity and long-term leak-free reliability. The defining functional highlight is its dual-technology architecture backed by active pressure boost: the integrated electric pump maintains stable filtration performance at low line pressures (2-5 bar), reverse osmosis technology purifies water down to the molecular level, and mineralizing post-filtration enriches it with essential calcium minerals (< 10 mg/L Calcium) to improve taste and pH (6.5-7.5). For maximum operational safety, the filter comes factory-equipped with a 5-bar mini pressure reducer to shield components against pressure surges and an active mechanical leak sensor that automatically shuts off feed water if moisture is detected. Supplied complete with a 12 L plastic pressure tank, chrome ball valve drinking water faucet, 1/2" and 3/8" feed adapters, color-coded tubing, and service wrenches, this advanced unit offers seamless plug-and-play installation and effortless daily maintenance.

Functional Features:

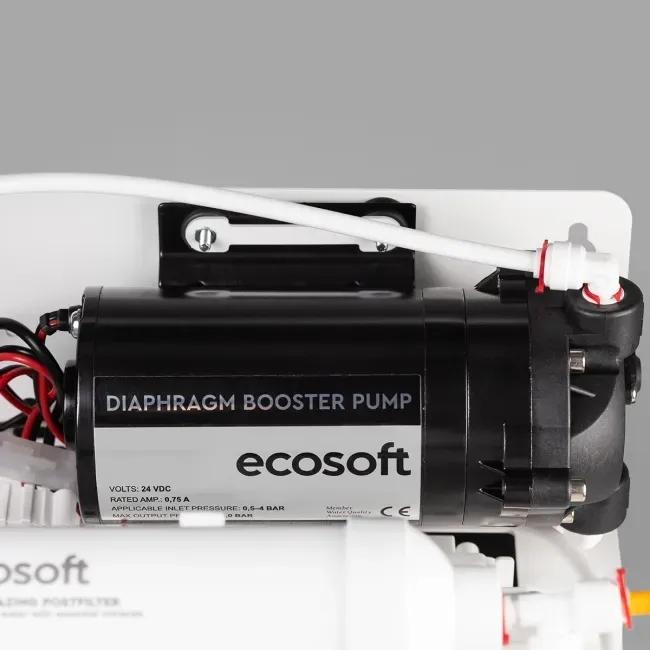

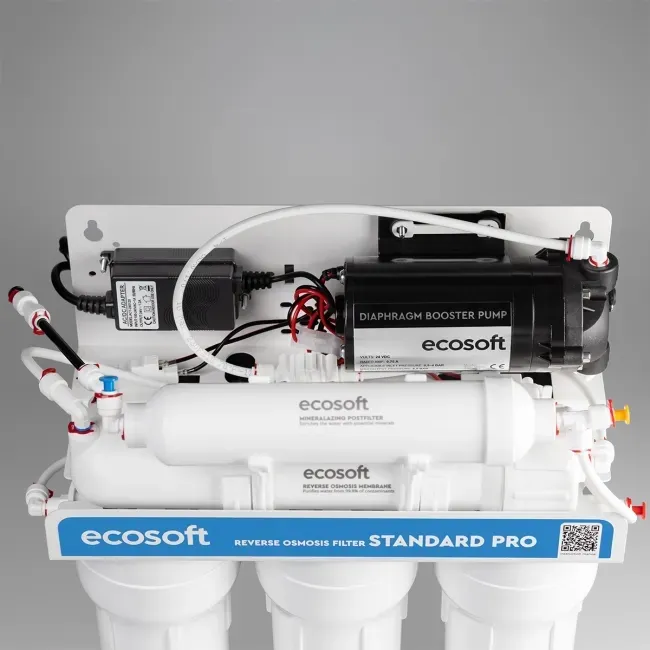

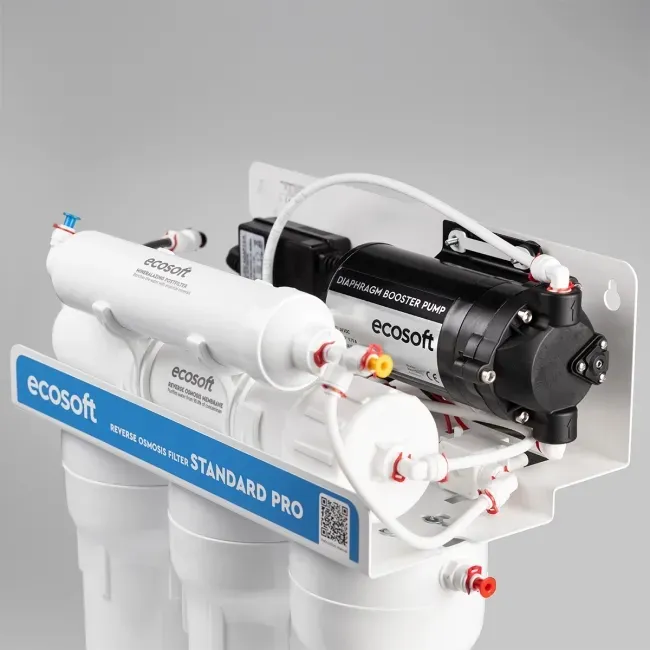

• Integrated Booster Pump: Electric pump maintains optimal operating pressure and stable filtration efficiency even in low-pressure water networks (2-5 bar).

• Basic Calcium Mineralization: Enriches purified water with natural calcium minerals (< 10 mg/L) to improve taste and support everyday hydration.

• 35% High-Efficiency Recovery: Optimized filtration layout achieves up to 35% recovery rate, limiting wastewater sent to the drain compared to traditional RO systems.

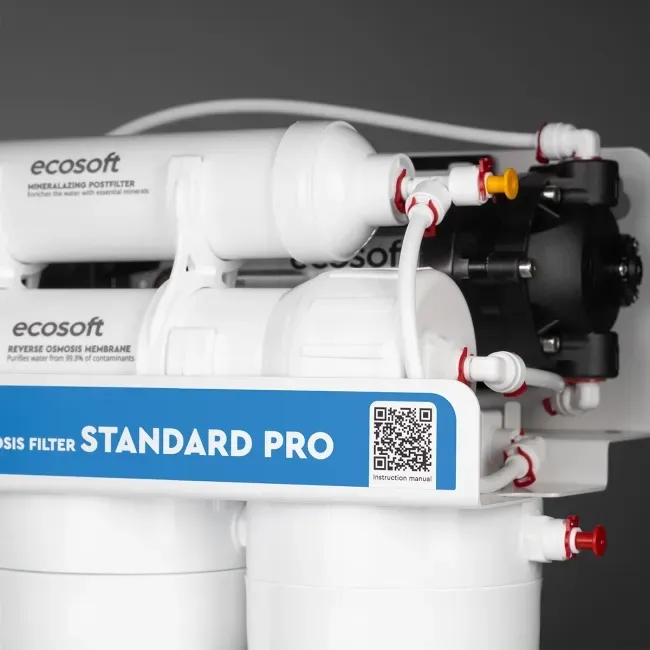

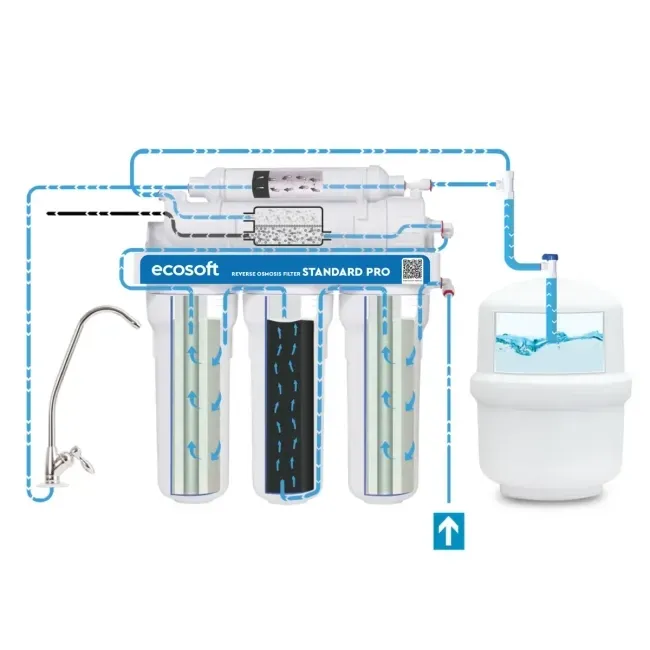

• Deep Molecular Purification: 5-micron sediment pre-filter, AquaGreen carbon block, 1-micron sediment filter, 50 GPD RO membrane, and mineralizing post-filter remove up to 99.8% of contaminants, including PFAS, chlorine, bacteria, heavy metals, and limescale.

• Integrated Safety & Eco-Friendly Design: Built-in mini pressure reducer limits line pressure to 5 bar, while an automatic mechanical leak sensor prevents kitchen flooding and long-life cartridges reduce plastic waste.

Technical Characteristics of the Filter:

• Product Type: 5-Stage Domestic Reverse Osmosis System with Calcium Mineralization and Pump

• Product Code / Color Finish: MO550MPECOSTD / White & Blue

• Filtration Capacity: 50 GPD (190 L/day or 8 L/h)

• Pre-Filter Cartridges: 5 Micron PP Sediment, AquaGreen Filter, 1 Micron PP Sediment

• Membrane Element: Ecosoft 50 GPD RO Membrane

• Post-Filters: Ecosoft Mineralizing Post-Filter Cartridge

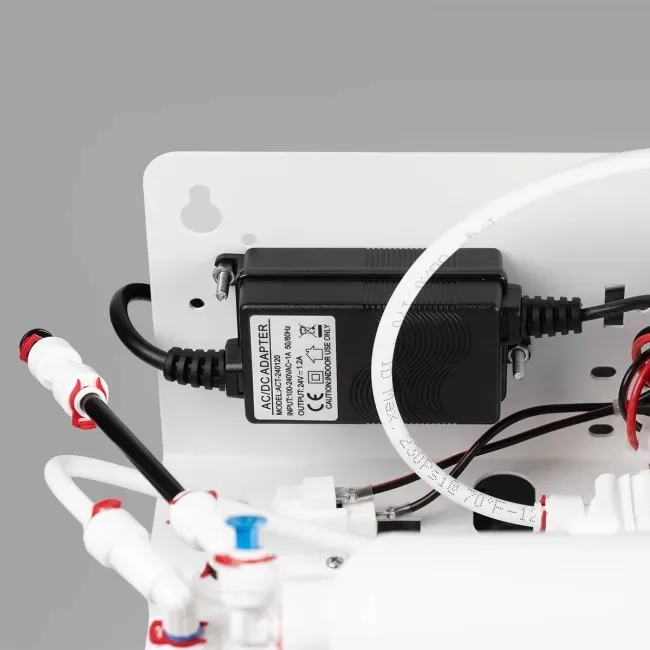

• Booster Pump Included: Yes (230 V / 50 Hz power supply)

• Safety Components Included: 5-bar Mini Pressure Reducer & Mechanical Leak Sensor

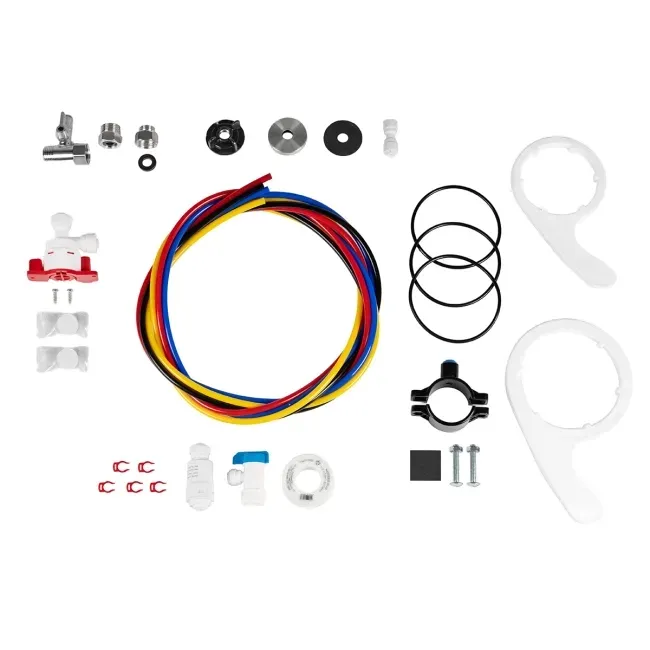

• Plumbing Feed Adapters Included: 1/2" & 3/8" Thread Adapters with Feed Valve

• Drinking Faucet Included: Chrome Ball Valve Faucet

• Product Net / Gross Weight: 10.10 kg / 11.85 kg

Dimensions and Installation Specifications:

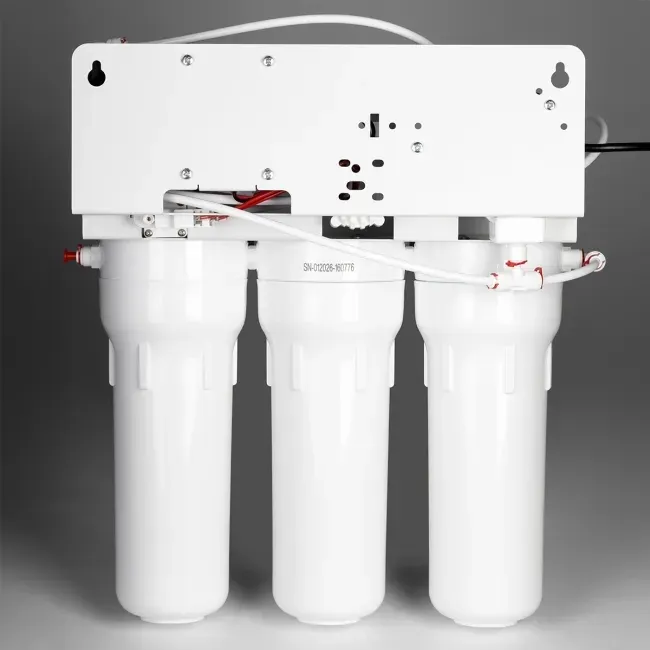

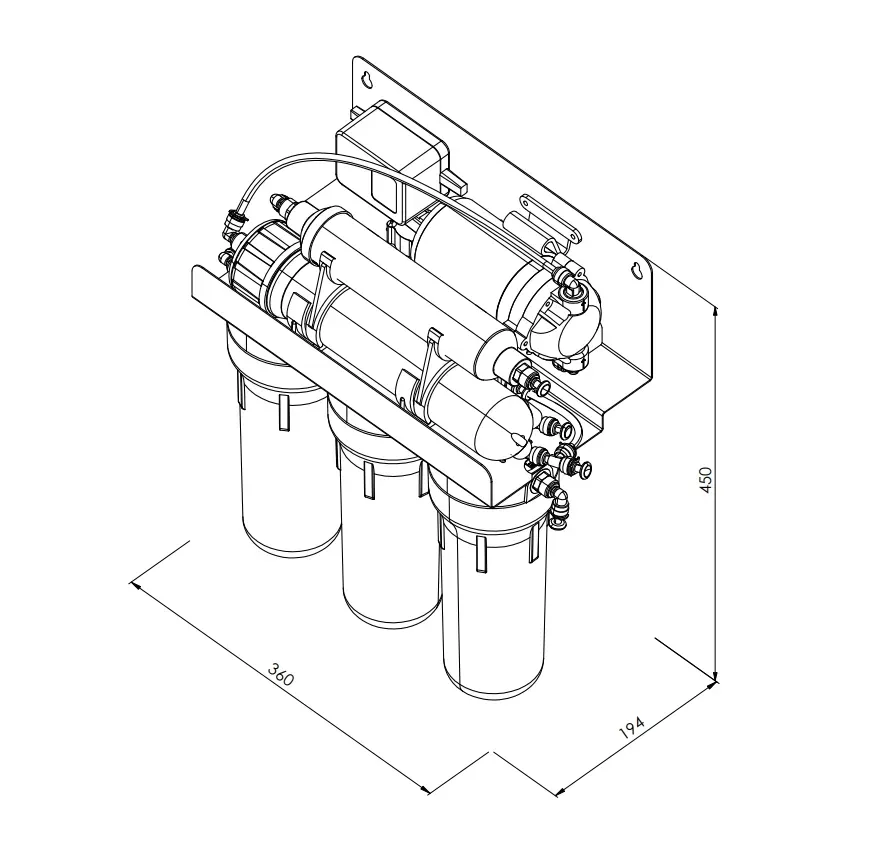

• Filter Unit Dimensions (H x W x D): 414 x 422 x 135 mm

• Storage Tank Dimensions (H x W x D): 350 x 260 x 260 mm

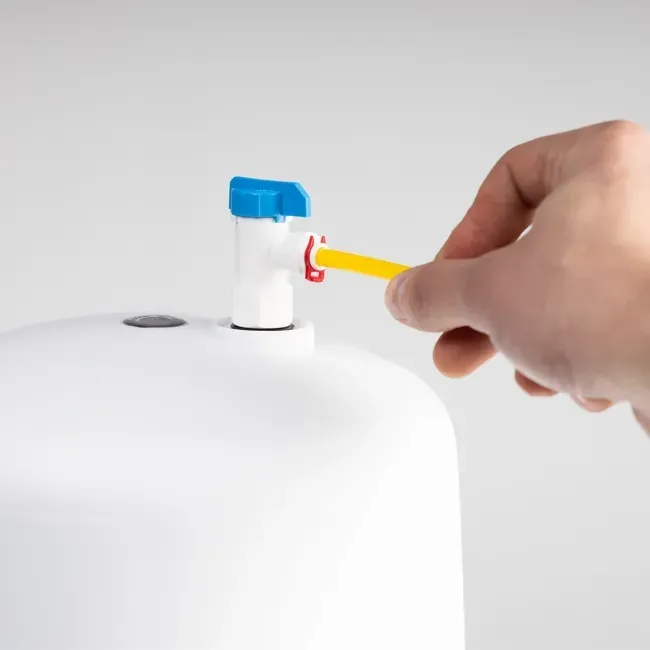

• Storage Tank Volume: 12 L Total Volume (usable volume up to 7 L)

• Operating Feed Pressure Range: 2.0-5.0 bar (29-72.5 psi)

• Operating Feed Water Temperature: +4 to +30 °C

Please note: Replace the pre-filter set every 6 months, replace the mineralizing post-filter every 6 months, and replace the reverse osmosis membrane every 12 to 18 months to ensure consistent water quality and optimal system performance. Clean the external housing using soft cloths and non-abrasive natural cleaning products.
