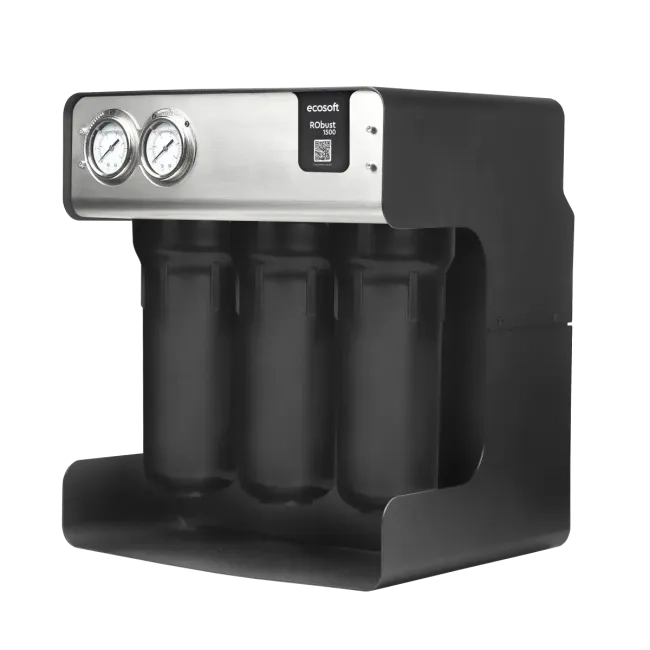

Ecosoft RObust 1500 Direct Flow Reverse Osmosis System for HoReCa

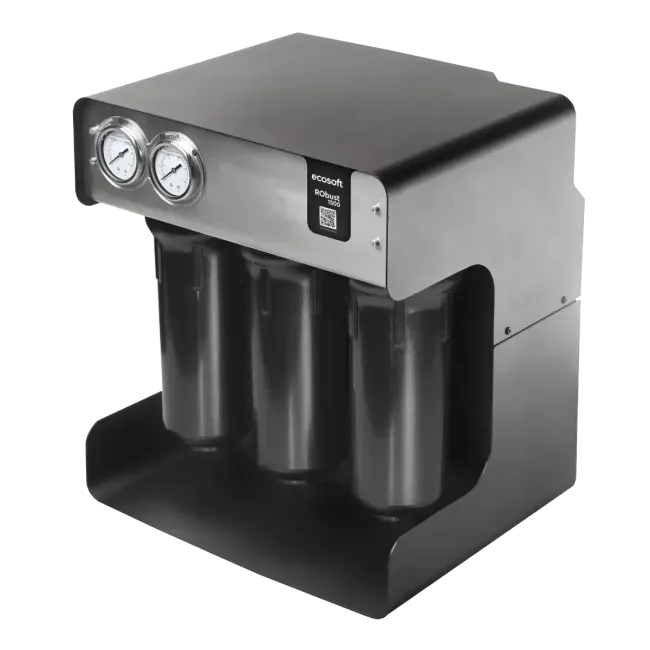

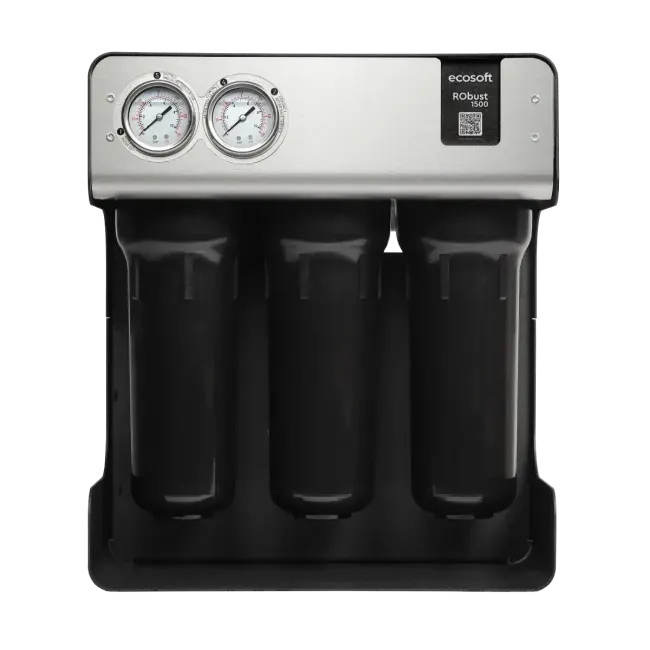

Featuring an enclosed housing that protects internal electronics and simplifies service access, the RObust 1500 combines durability with sleek ergonomics. The primary functional highlights include dual front-panel pressure gauges (monitoring pre-filter output and operating pump pressure) and a 4-stage filtration architecture utilizing a 5-micron PP sediment pre-filter, a CTO carbon pre-filter, a 500 GPD RO membrane element, and a CTO carbon post-filter. It removes up to 99.8% of dissolved solids, chlorine, heavy metals, and bacteria, delivering stable water quality directly to connected appliances or optional dispensing taps.

Functional Features:

• Direct-Flow Capacity: Delivers a continuous flow rate of 90–100 L/h (1.65 L/min) with no storage tank required.

• 20-Hour Continuous Duty: Engineered with durable commercial components built for intensive daily operation in HoReCa environments.

• High Efficiency 60% Recovery: Maximizes purified water output while reducing drain wastewater.

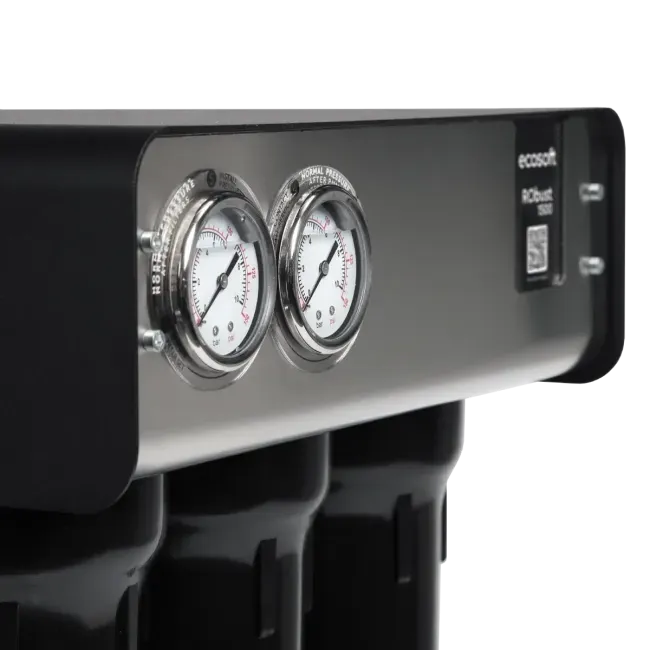

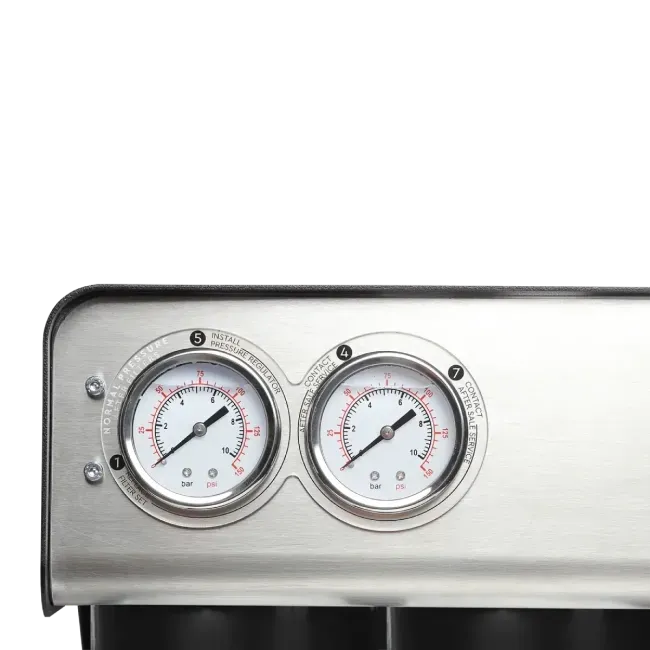

• Dual Pressure Gauges: Integrated front gauges monitor pre-filter clogging and membrane operating pressure in real time.

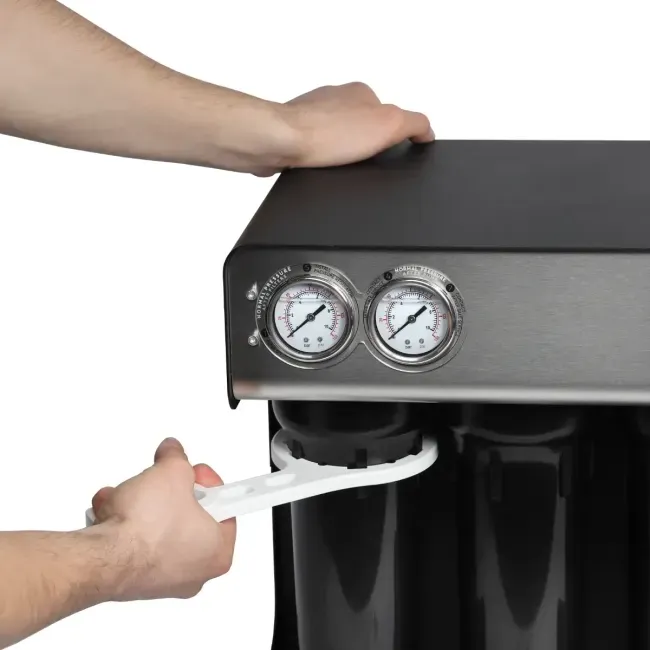

• Accessible Enclosed Body: Compact countertop or under-sink footprint (417 × 367 × 297 mm) with easy-access housings for quick maintenance.

Technical Characteristics of the Filter:

• Product Type: Commercial Direct-Flow Reverse Osmosis System

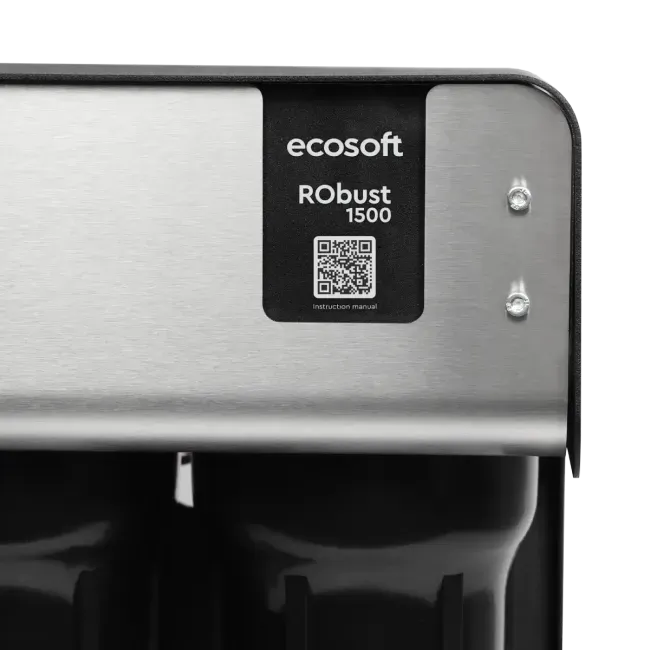

• Model Name: Ecosoft RObust 1500 (ROBUST1500ECO)

• Flow Capacity: 90–100 L/h (1.5–1.65 L/min)

• Membrane Rating: 500 GPD (1x 500 GPD membrane element)

• Recovery Rate: Up to 60%

• Operating Water Pressure: 6–8 bar (inlet feed pressure required: 2–5 bar)

• Power Supply / Consumption: 100–240 V, 50–60 Hz / 0.12 kW (120 W)

• Drinking Water Faucet: Not included (engineered for direct appliance connection)

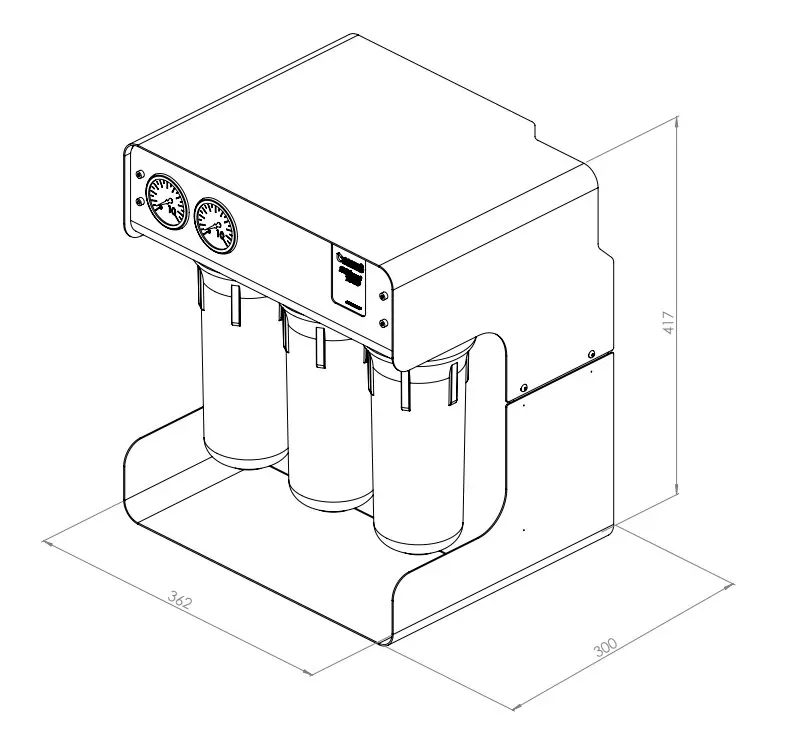

• System Dimensions (H × W × D): 417 × 367 × 297 mm

• Weight: 9 kg

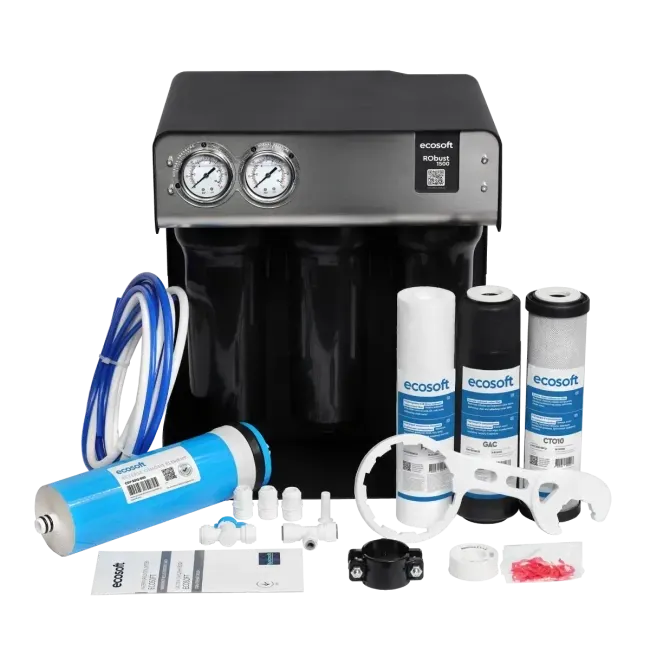

• Replacement Elements: PP 5-micron pre-filter (3 mos), CTO carbon pre-filter (3 mos), 500 GPD RO membrane (12 mos), CTO carbon post-filter (3 mos)

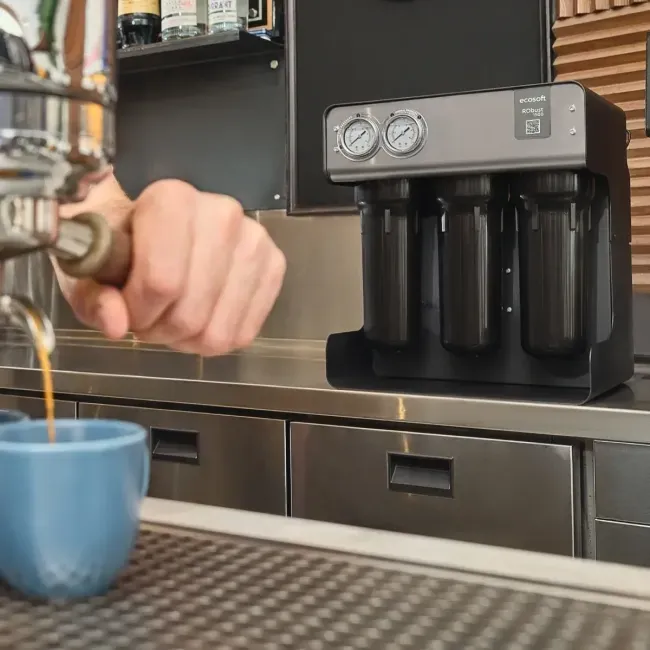

Please note: Drinking water faucet is not included in the set, as the system is primarily engineered for direct connection to commercial equipment (coffee machines, ice makers, autoclaves, or dishwashers). Replace pre-filters and post-filters after filtering 10,000 liters or at least every 3 months. Replace the 500 GPD RO membrane element after 30,000–40,000 liters or at least once per year when filtration speed decreases significantly. If the pressure gauge after the pre-filters drops below 1 bar, replace the pre-filters immediately to avoid damaging the booster pump. If the system remains unused for over 2 weeks, perform a full sanitization before resuming operation.
