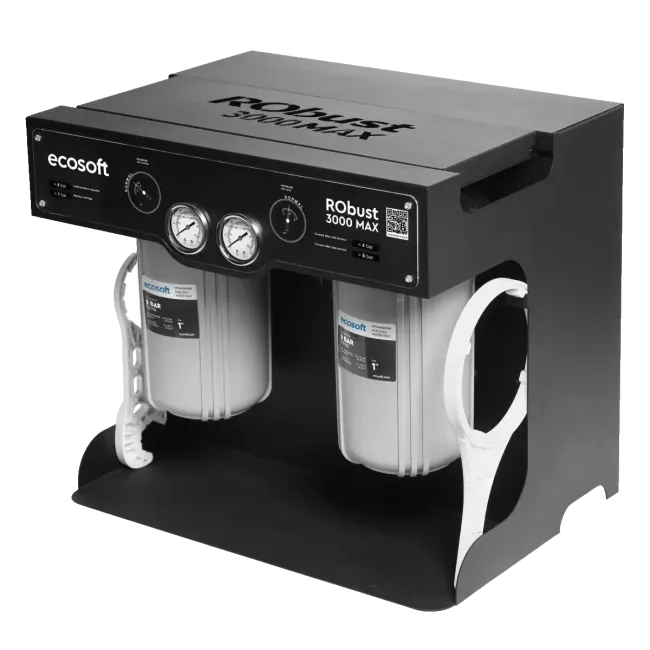

Ecosoft RObust 3000 MAX Direct Flow Reverse Osmosis System for HoReCa

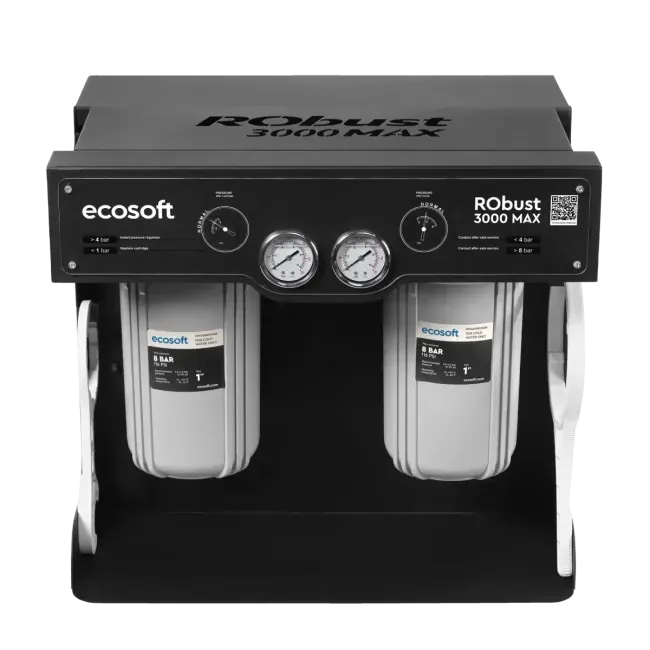

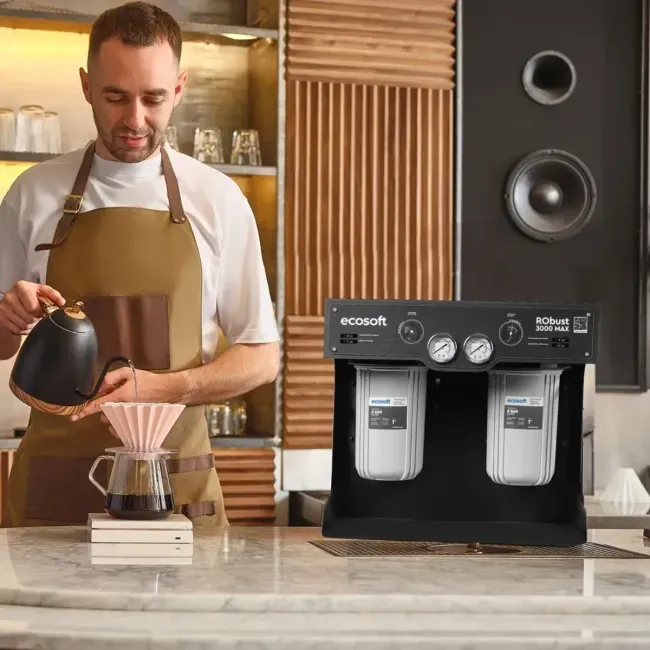

Equipped with dual front-panel pressure gauges (monitoring pressure after the pre-filters and operating pump pressure) and a high-capacity booster pump, the RObust 3000 MAX ensures real-time operational monitoring and system protection. Its multi-stage filtration architecture utilizes two Big Blue 10" (4.5"×10") carbon block pre-filters and two 500 GPD reverse osmosis membrane elements (1000 GPD total capacity), removing up to 99.8% of dissolved solids, chlorine, heavy metals, and bacteria. Built into a compact, space-saving frame (466 × 523 × 406 mm), it fits seamlessly into commercial kitchens to provide direct-flow purification to connected appliances or dispensing networks.

Functional Features:

• High Direct-Flow Output: Delivers a continuous flow rate of 150–160 L/h (2.5 L/min) with no storage tank required.

• 20-Hour Continuous Duty: Engineered with heavy-duty commercial components designed for intensive daily operation in HoReCa environments.

• Advanced BB10 Pre-Filtration: Features two high-capacity 4.5"×10" Big Blue carbon block cartridges to handle challenging raw water conditions and extend membrane life.

• 55% Recovery Rate: High-efficiency filtration system minimizes wastewater output compared to standard RO units.

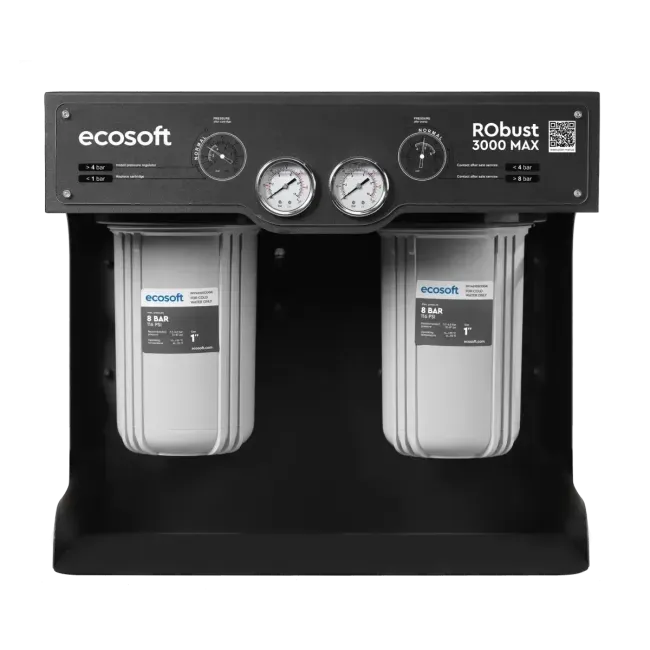

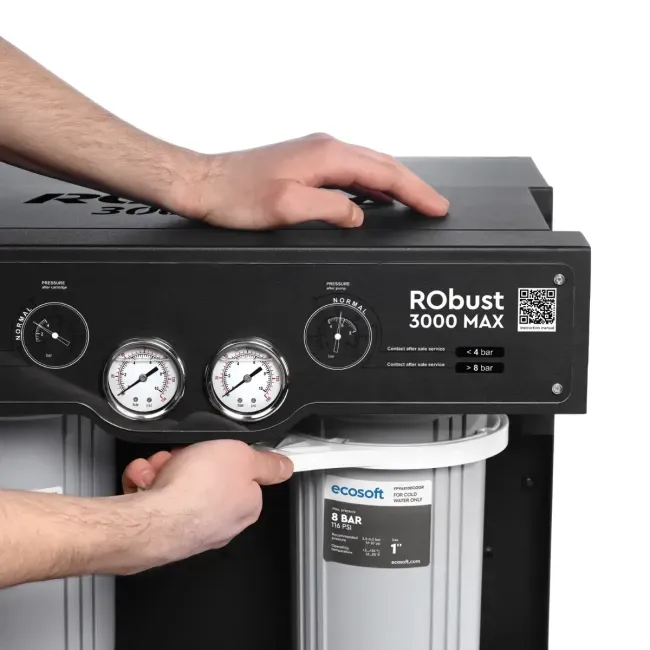

• Dual Pressure Gauges: Integrated gauges display pre-filter pressure drop and membrane pump operating pressure in real time.

Technical Characteristics of the Filter:

• Product Type: Commercial Direct-Flow Reverse Osmosis System

• Model Name: Ecosoft RObust 3000 MAX (ROBUST3000MAX)

• Flow Capacity: 150–160 L/h (2.5 L/min)

• Total Membrane Capacity: 1000 GPD (2x 500 GPD membrane elements)

• Recovery Rate: 55%

• Operating Water Pressure: 6–8 bar (inlet feed pressure required: 2–5 bar)

• Power Supply / Consumption: 100–240 V, 50–60 Hz / 0.12 kW (120 W)

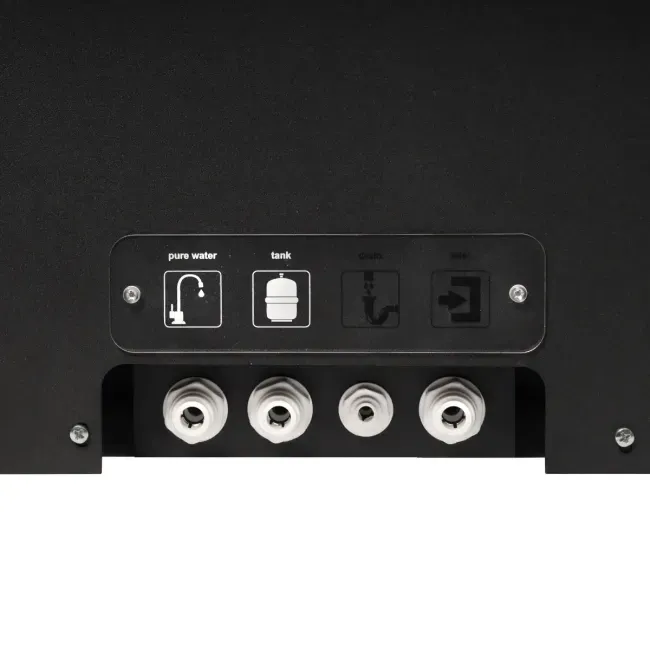

• Drinking Water Faucet: Not included (engineered for direct appliance or network connection)

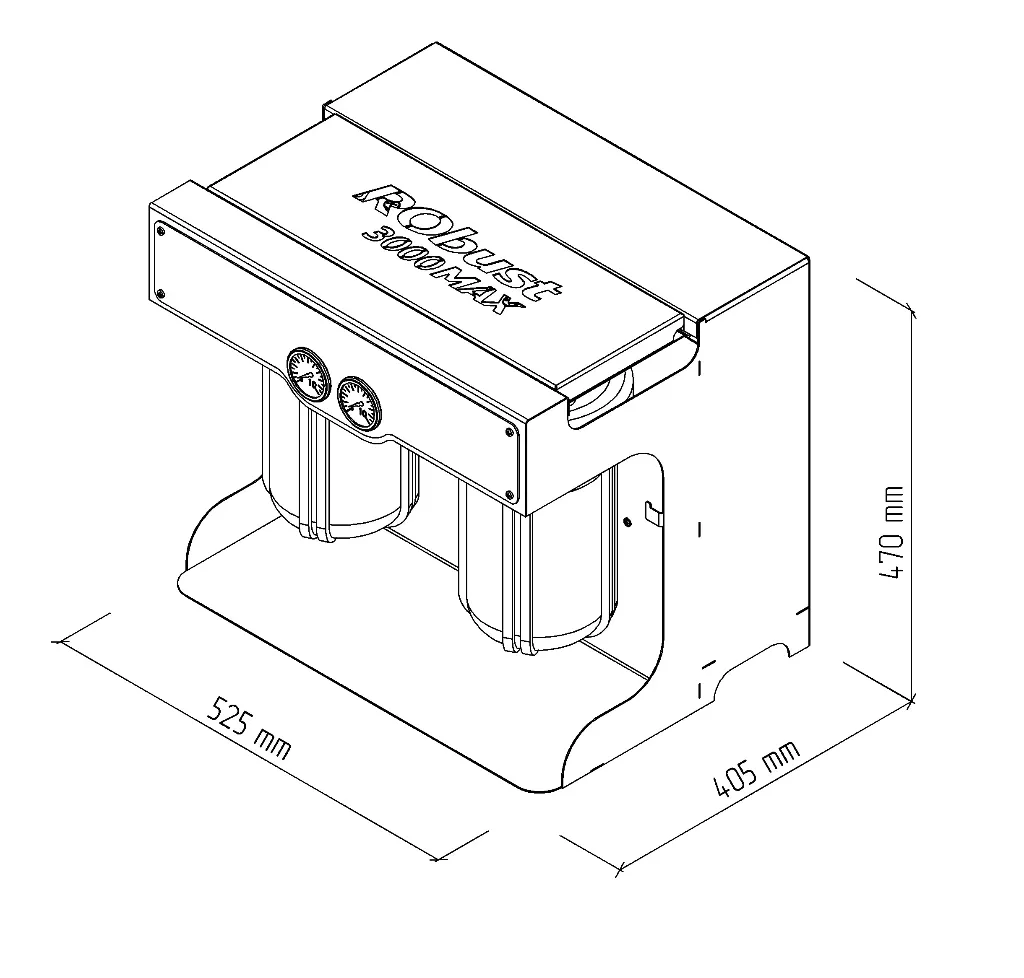

• System Dimensions (H × W × D): 466 × 523 × 406 mm

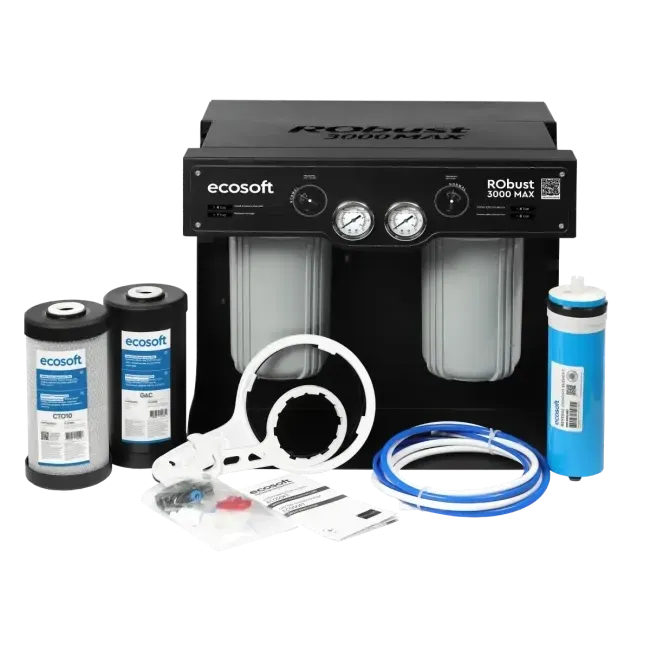

• Replacement Elements: 2× Ecosoft BB10 4.5"×10" carbon block cartridges (6 mos), 2× 500 GPD RO membranes (12 mos)

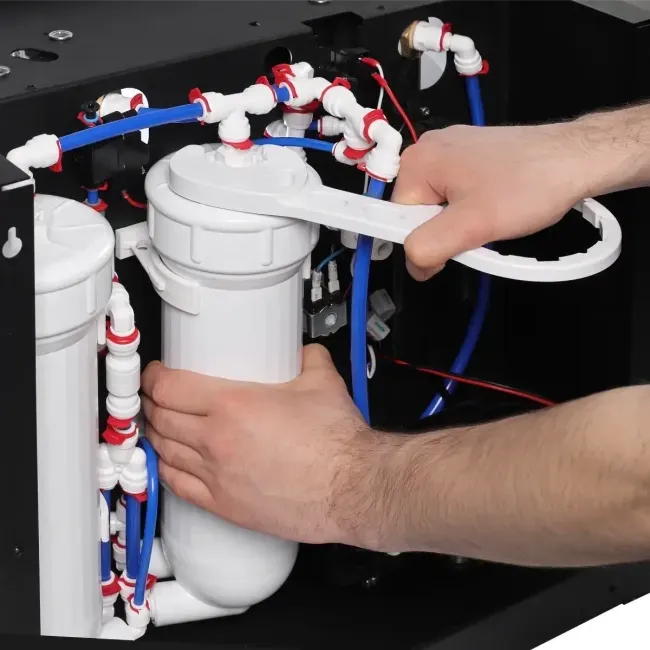

Please note: Drinking water faucet is not included in the factory set, as the system is primary engineered for direct connection to commercial kitchen appliances (coffee machines, ice makers, steam ovens, dishwashers) or external dispensing networks. Replace the BB10 carbon block pre-filters after filtering 40,000 liters or at least every 6 months. Replace both 500 GPD RO membrane elements after 60,000 liters or at least once per year. If the pressure gauge after the pre-filters drops below 1 bar, replace the pre-filter cartridges immediately to avoid damaging the pump. If the system remains unused for over 2 weeks, perform a full sanitization procedure before resuming operation.
