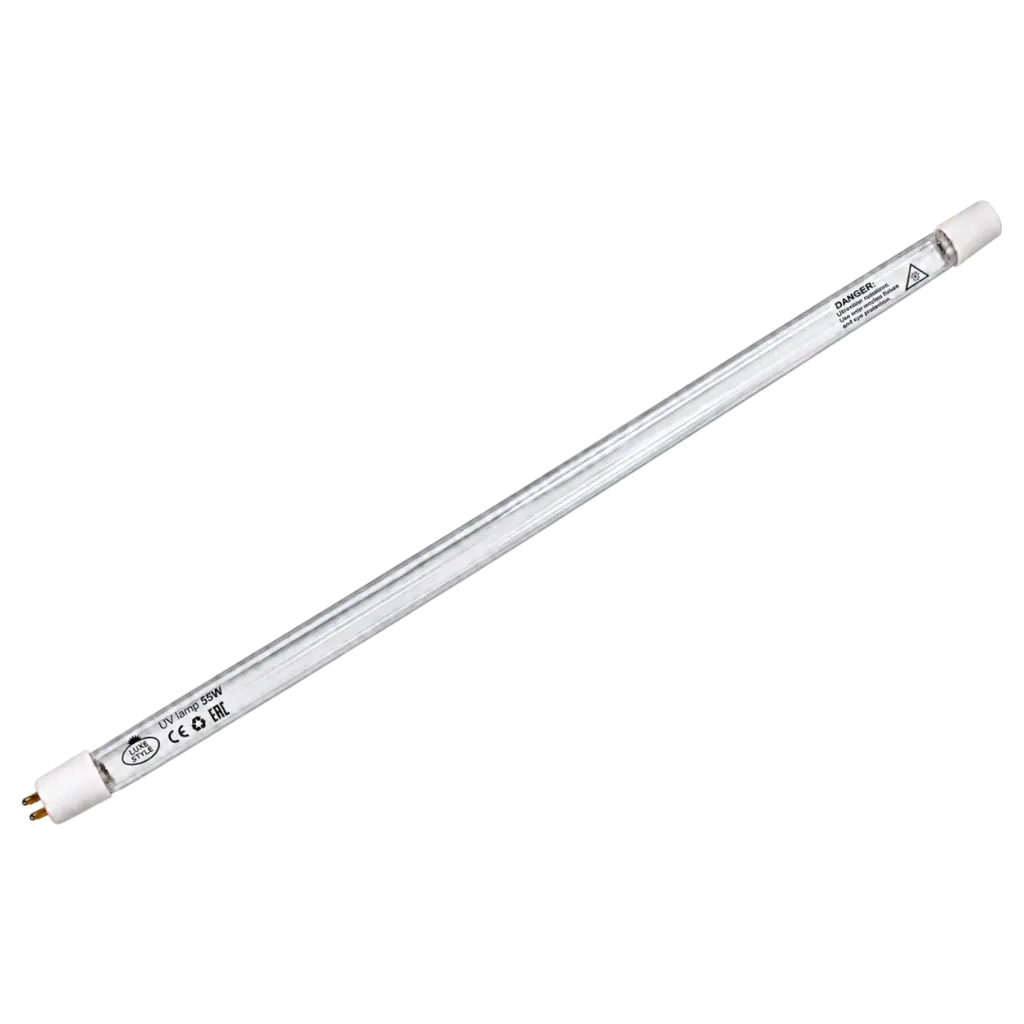

Measuring 925 mm in length, the Luxe Style 55W lamp features a standard 4-pin single-ended base that ensures secure mechanical alignment and rapid electrical connection to the electronic ballast. Rated for an operational lifespan of up to 8,000 hours (approximately 12 months of continuous use), it draws 55 W of power at an operating voltage of 90.2 V and a current of 0.5 A. Timely replacement maintains the required germicidal dosage inside the stainless steel reactor chamber, preventing microbiological breakthrough in high-volume water supply setups.
Functional Features:
253.7 nm Germicidal Output: Neutralizes pathogenic microorganisms and spores at an intensity of 145 µW/cm² without altering water taste, odor, or chemical composition.
8,000-Hour Operating Life: Delivers up to 12 months of continuous, round-the-clock water disinfection.
4-Pin Single-Ended Base: Streamlined electrical connection simplifies routine servicing and prevents mounting errors.
Quartz Glass Tube (Ø 15 mm): 925 mm quartz envelope provides optimal UV-C transmission efficiency.
High-Output 55 W Rating: Operates at 90.2 V and 0.5 A to maintain steady, powerful germicidal output for whole-building purification.
Technical Characteristics:
Product Type: Replacement Germicidal UV Lamp
Brand: Luxe Style
Power Wattage: 55 W
Base / Holder Type: 4 Pins Single Ended
Wavelength: 253.7 nm
UV Intensity (distance = 1 m): 145 µW/cm²
Operational Lifespan: Up to 8,000 hours
Operating Voltage: 90.2 V
Operating Current: 0.5 A
Lamp Length (L): 925 mm
Tube Diameter (Ø): 15 mm
Mercury Content (Hg): 10 mg
Please note: Replace the UV lamp every 12 months (8,000 operating hours); germicidal output degrades over time even while visible illumination continues. Do not touch the quartz surface with bare hands during installation—wear clean cotton gloves. If fingerprints contact the glass, clean the envelope with an alcohol wipe before inserting it into the quartz sleeve.
